YG2A2B-050VH2XLEAX | Connectors and cables

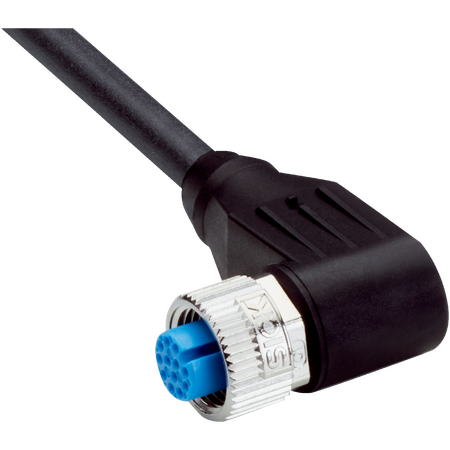

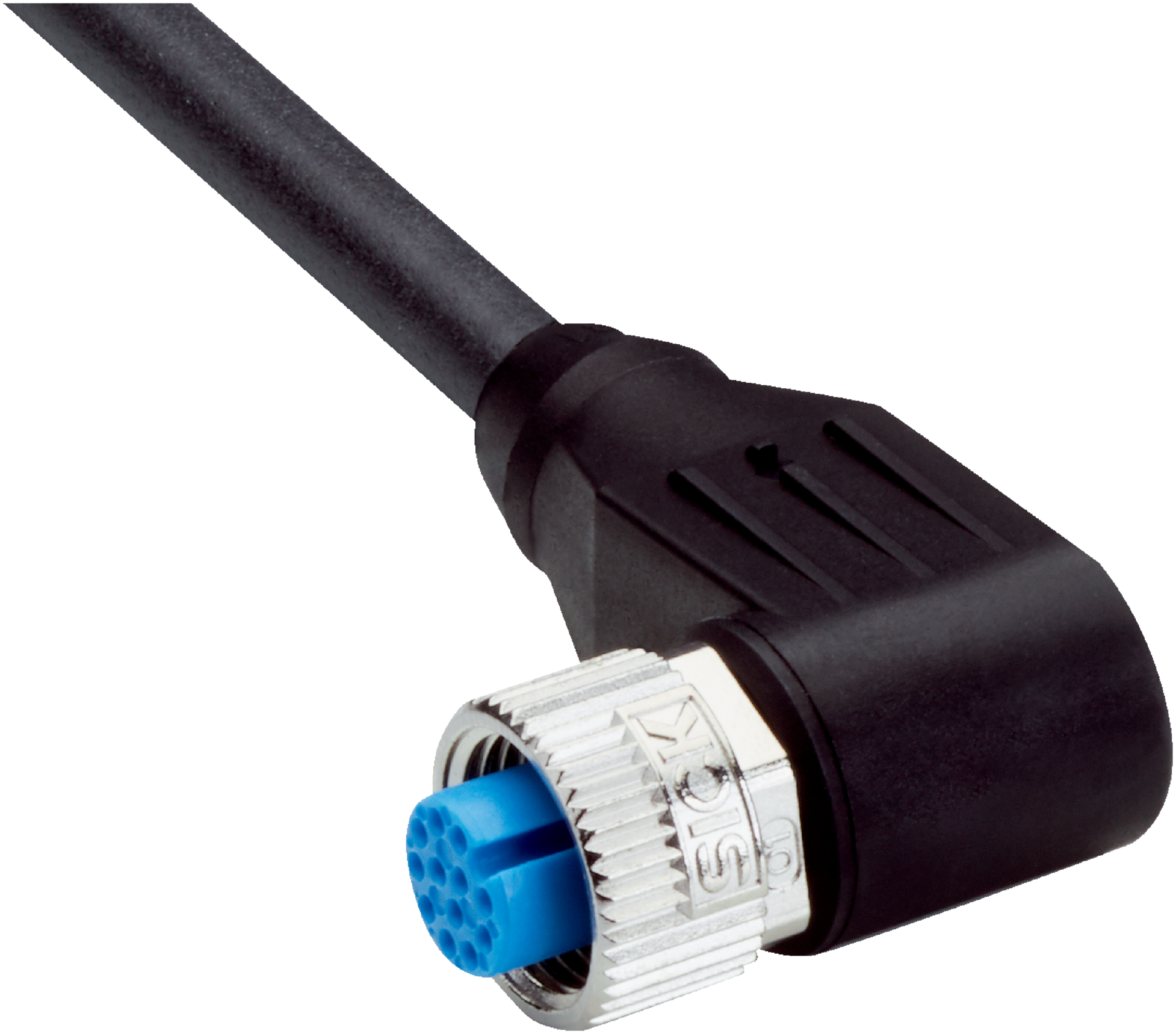

The SICK YG2A2B-050VH2XLEAX is a robust M12 12-pin female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring high IP protection and durable materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A2B-050VH2XLEAX | Connectors and cables
Brand: SICK
SKU: 2130956
Alternatively Known As: M12 12-pin female connector cable, Sensor actuator cable M12, SICK M12 connector with flying leads
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 12-wire, PVC
- Jacket material: PVC
- Cable diameter: 6.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 15 x cable diameter
- Bending radius stationary position: > 10 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 1.5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 20mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 12-pin angled A-coded connector
- Screw locking plug connector for secure connection
- TPU connector material with zinc die-cast nickel-plated locking nut
- Shielded 5 m, 12-wire PVC cable with gray jacket
- High enclosure rating: IP65 / IP66K / IP67
- Operating temperature range: -30°C to +85°C depending on use
- Rated impulse voltage of 0.8 kV and current loading up to 1.5 A
- Contamination rating 3 for harsh environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and high IP rating reduce need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A2B-050VH2XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
