YG2A88-C60XXXM2A88 | Connectors and cables

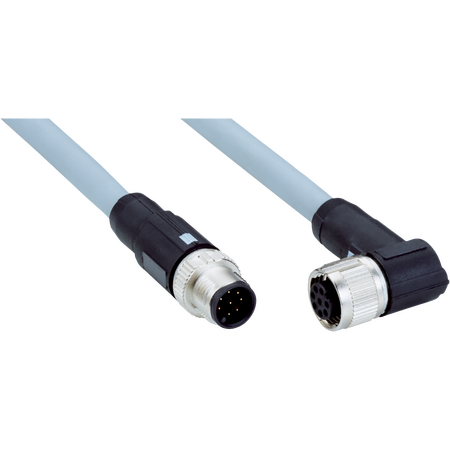

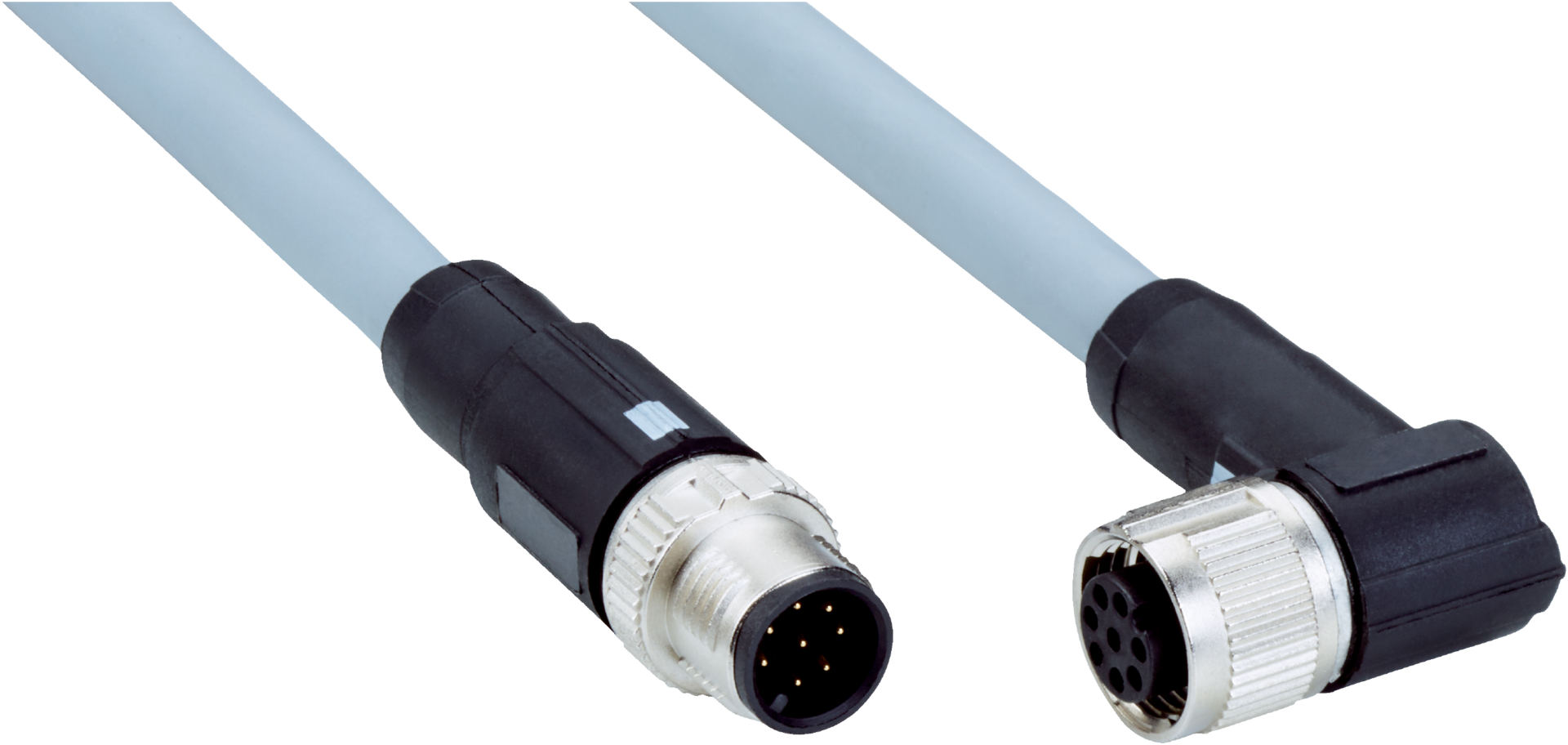

The SICK YG2A88-C60XXXM2A88 is a high-quality M12 8-pin connector cable with angled female and straight male connectors, designed for industrial automation with robust PUR jacket and IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A88-C60XXXM2A88 | Connectors and cables
Brand: SICK
SKU: 6048801
Alternatively Known As: M12 8-pin connector cable, M12 sensor cable, angled female to straight male M12 cable, industrial automation connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Cable length: 0.6 m
- Cable wires: 8-wire
- Jacket material: PUR
- Jacket color: Gray
- Conductor cross section: 0.25 mm²
- Bending radius: 57 mm (flexible and stationary use)
- Operating temperature: -50 °C to +80 °C
- Bending cycles: 3,000,000
- Reference voltage: ≤ 30 V
- Traversing speed: 1.4 m/s
- Enclosure rating: IP65 / IP67 / IP69K
- Insulation resistance: ≥ 100 MΩ
- Specific insulation resistance: ≤ 5 mΩ
- Dimensions (H x L x W): 12mm x 600mm x 12mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 8-pin, angled, A-coded on head A
- Male connector M12, 8-pin, straight, A-coded on head B
- 0.6 m length, 8-wire PUR cable with gray jacket
- High bending radius of 57 mm suitable for flexible and stationary use
- Durable PUR jacket material for robust industrial environments
- High bending cycles up to 3,000,000 for long service life
- Operating temperature range from -50 °C to +80 °C
- Enclosure rating IP65/IP67/IP69K for protection against dust and water
- Insulation resistance ≥ 100 MΩ and specific insulation resistance ≤ 5 mΩ
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connections
- Factory and process automation
- Robotics and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements, minimizing waste
- High bending cycle rating extends product lifespan, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A88-C60XXXM2A88 M12 8-pin connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
