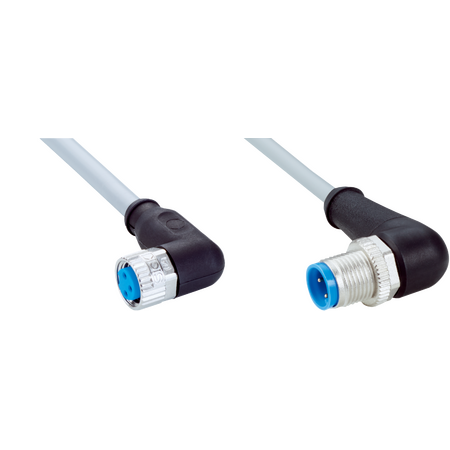

YG8U13-010VA1N2A13 | Connectors and cables
The SICK YG8U13-010VA1N2A13 is a high-quality M8 to M12 sensor/actuator cable connector with IP65/IP66K/IP67 protection, suitable for industrial automation in chemical and uncontaminated zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U13-010VA1N2A13 | Connectors and cables
Brand: SICK
SKU: 2115602
Alternatively Known As: M8 to M12 Sensor Cable Connector, Industrial Sensor Connector, Actuator Cable Connector, IP67 Sensor Connector
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable: 1 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: -5 °C to +80 °C (flexible use), -30 °C to +80 °C (stationary position), Head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 30mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M8 3-pin angled connector (A-coded) on head A
- Male M12 3-pin angled connector (A-coded) on head B
- Screw locking plug connector for secure connection
- Connector material made of TPU with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material for enhanced sealing
- Cable length of 1 meter with 3-wire PVC jacket
- Operating temperature range: -5°C to +80°C (flexible use), -30°C to +80°C (stationary)
- Enclosure rating IP65 / IP66K / IP67 for dust and water protection
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading up to 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce environmental impact by extending product life
- High protection rating reduces risk of failure and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG8U13-010VA1N2A13 connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
