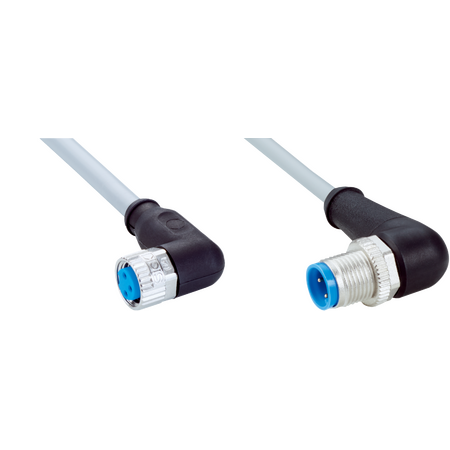

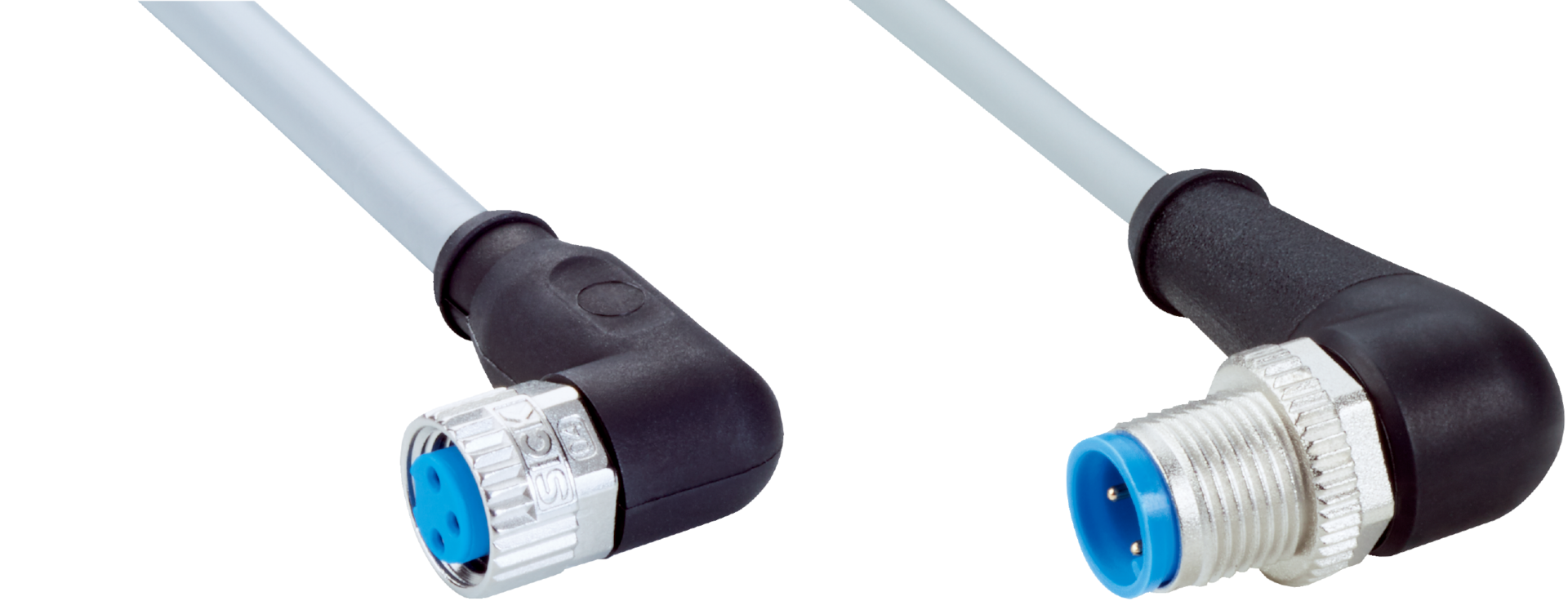

YG8U13-100VA1N2A13 | Connectors and cables
The SICK YG8U13-100VA1N2A13 is a durable sensor/actuator cable featuring M8 and M12 connectors, designed for industrial automation with high protection ratings and flexible use in chemical and uncontaminated zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U13-100VA1N2A13 | Connectors and cables
Brand: SICK
SKU: 2146393
Alternatively Known As: M8 to M12 Sensor Cable, Industrial Sensor Connector Cable, Actuator Connection Cable, SICK Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable length: 10 m, 3-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 30mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M8 3-pin angled connector (A-coded) and male M12 3-pin angled connector (A-coded)
- Screw locking plug connector for secure connection
- Connector material made of TPU with zinc die-cast nickel-plated locking nut
- Cable jacket made of gray PVC with 10 m length and 3-wire configuration
- Unshielded cable with 0.25 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: -5 °C to +80 °C (flexible use), -30 °C to +80 °C (stationary), head rated -25 °C to +85 °C
- Nominal voltage of 300 V AC and test voltage of 2000 V AC
- Current loading up to 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for flexible and stationary cable installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-100VA1N2A13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
