YG8U13-C60VA1N2A13 | Connectors and cables

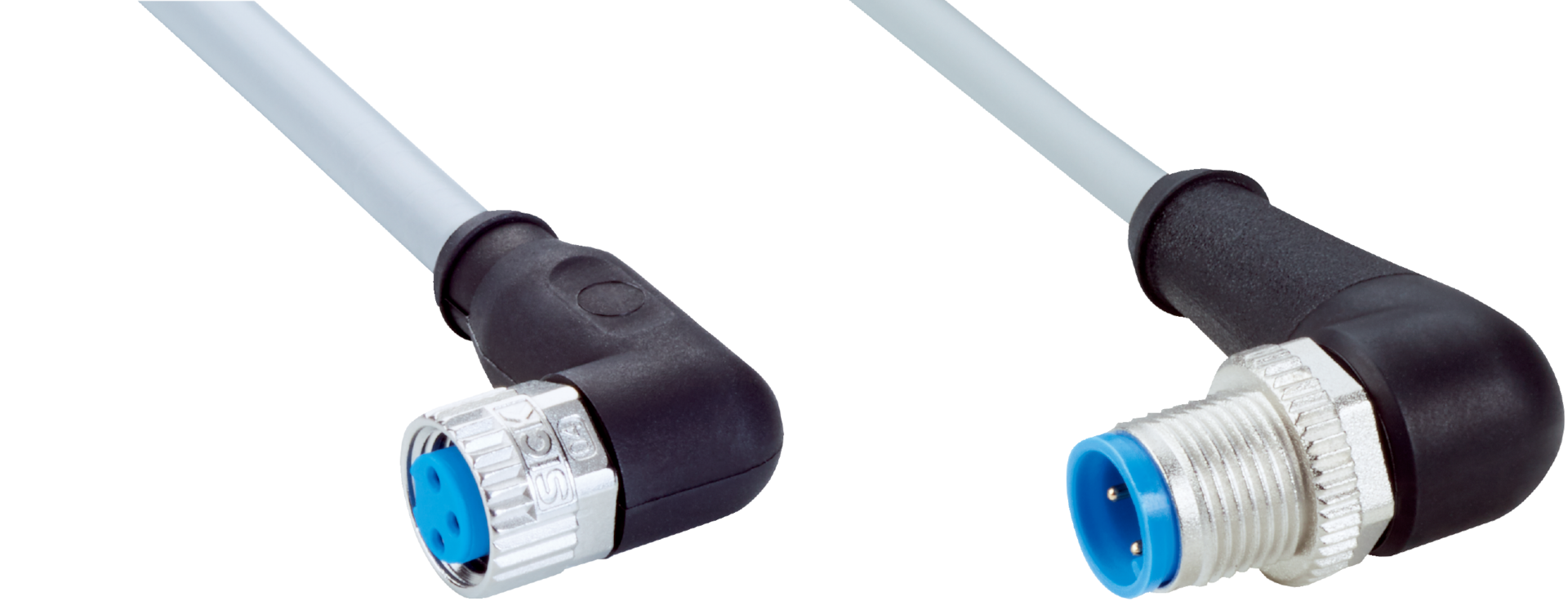

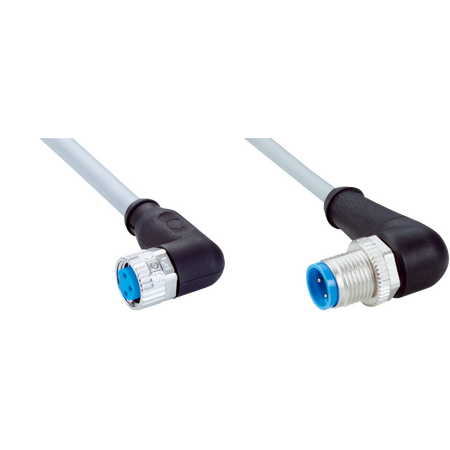

The SICK YG8U13-C60VA1N2A13 is a durable sensor/actuator cable connector featuring M8 and M12 angled connectors, designed for industrial applications with high protection ratings and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U13-C60VA1N2A13 | Connectors and cables
Brand: SICK
SKU: 2146391
Alternatively Known As: M8 to M12 Sensor Cable Connector, Industrial Sensor Connector, Actuator Cable Connector
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable: 0.6 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, stationary –30 °C to +80 °C, head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, angled, A-coded
- Male connector M12, 3-pin, angled, A-coded
- Screw connection locking plug
- Connector material: TPU with zinc die-cast nickel-plated locking nut
- Cable length 0.6 m, 3-wire PVC jacket, gray color
- Unshielded cable with 0.25 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: Flexible use –5 °C to +80 °C, stationary –30 °C to +80 °C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring reliable electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant and chemical resistant materials enhance safety and longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-C60VA1N2A13 sensor/actuator cable connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
