YG8U13-C60VA1XLEAX | Connectors and cables

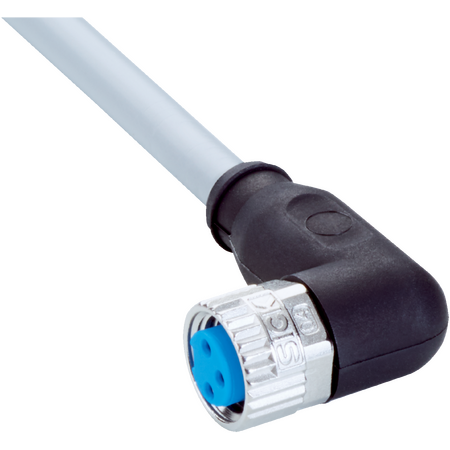

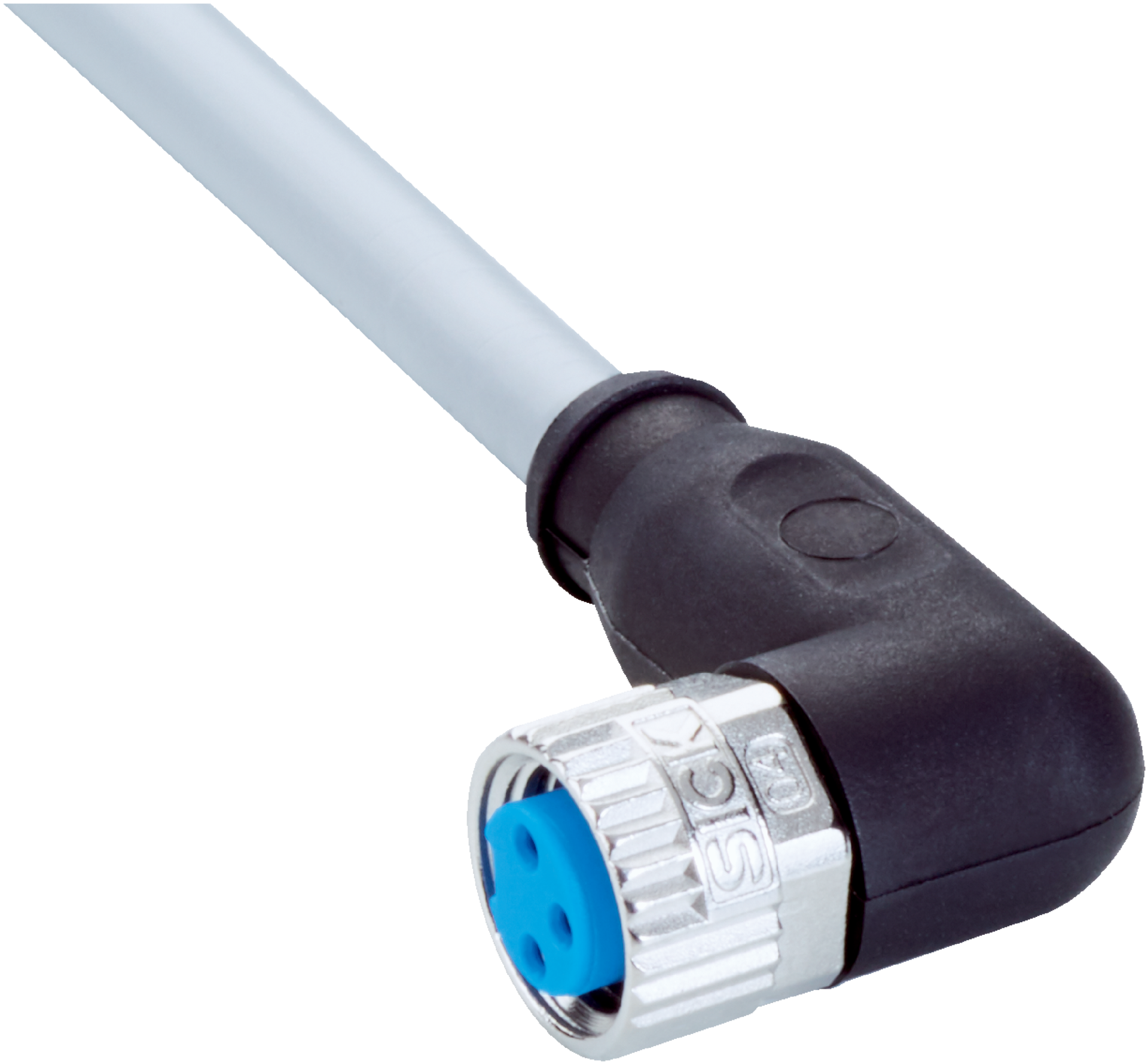

The SICK YG8U13-C60VA1XLEAX is a robust M8 3-pin female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring high ingress protection and flame retardant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U13-C60VA1XLEAX | Connectors and cables
Brand: SICK
SKU: 2146370
Alternatively Known As: M8 3-pin female connector cable, Sensor connector cable, SICK M8 connector, Flying lead sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 0.6 m, 3-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 60mm x 9mm
- Weight: 0.1 kg
Key Features
- Female M8, 3-pin angled connector, A-coded
- Screw locking plug connector for secure connection
- Connector made of durable TPU material
- Zinc die-cast, nickel-plated locking nut
- FKM seal material ensuring high sealing performance
- Cable length 0.6 m with 3-wire PVC jacket
- Unshielded cable with 0.25 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range from -30°C to +85°C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection integrity.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-C60VA1XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
