YG8U14-300VA3XLEAX | Connectors and cables

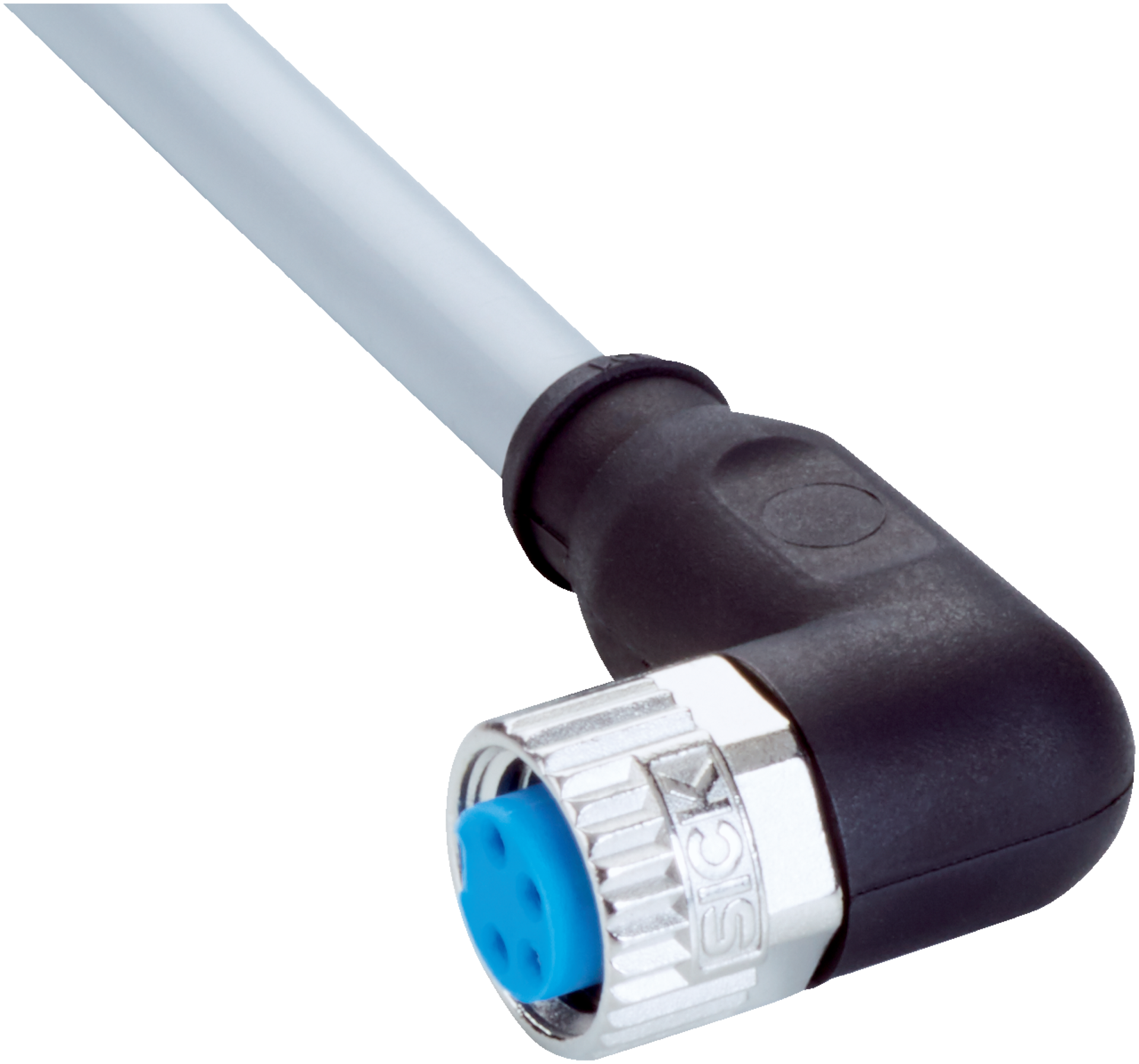

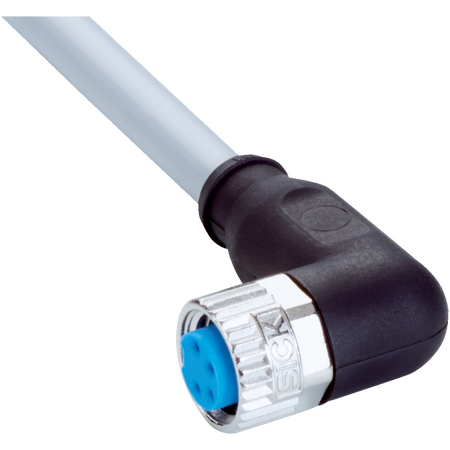

The SICK YG8U14-300VA3XLEAX is a durable sensor/actuator cable featuring a female M8 4-pin angled connector and 30 m PVC cable, designed for industrial environments requiring high protection and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U14-300VA3XLEAX | Connectors and cables
Brand: SICK
SKU: 2095968
Alternatively Known As: M8 4-pin sensor cable, actuator cable with M8 connector, industrial sensor cable, SICK sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 30 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 30000mm x 9mm
- Weight: 0.3 kg
Key Features
- Female M8, 4-pin angled connector with screw locking
- 30 m long, 4-wire PVC cable with 0.25 mm² conductor cross section
- IP65 / IP66K / IP67 rated for robust environmental protection
- Operating temperature range from -30°C to +85°C depending on use
- Flame retardant cable jacket according to UL 1581 VW1 / CSA FT1
- High insulation resistance of 100 MΩ and rated impulse voltage of 1.5 kV
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for flexible and stationary cable installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U14-300VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
