YH2A15-C60UB5XLEAX | Connectors and cables

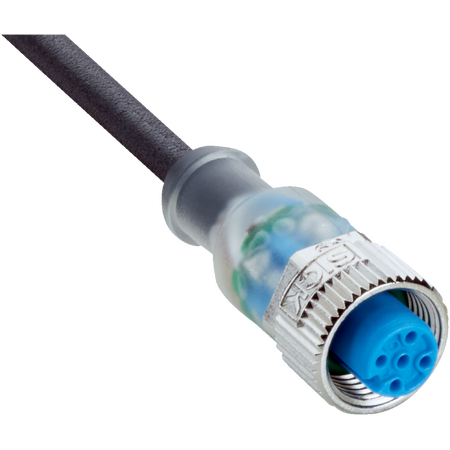

The SICK YH2A15-C60UB5XLEAX is a robust M12 5-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial automation, featuring high durability, LED indicator, and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YH2A15-C60UB5XLEAX | Connectors and cables
Brand: SICK
SKU: 2145534
Alternatively Known As: M12 5-pin female connector cable, Sensor actuator cable M12, Industrial connector cable, SICK M12 connector
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 10,000,000
- Display LED: Yes
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 5-pin, straight, A-coded connector
- Screw locking plug connector for secure connection
- Cable length 0.6 m with 5-wire PUR halogen-free jacket
- High bending radius suitable for flexible use and drag chain operation
- LED function indicator for operational status
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Operating temperature range from -40 °C to +85 °C
- Torsion capability of 180° per meter with 2,000,000 torsion cycles
- Nominal voltage 300 V AC and current loading up to 4 A
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Robotics and automation in uncontaminated zones
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YH2A15-C60UB5XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor/actuator applications requiring robust and reliable connections.
