YI2A14-010VB3XLEAX | Connectors and cables

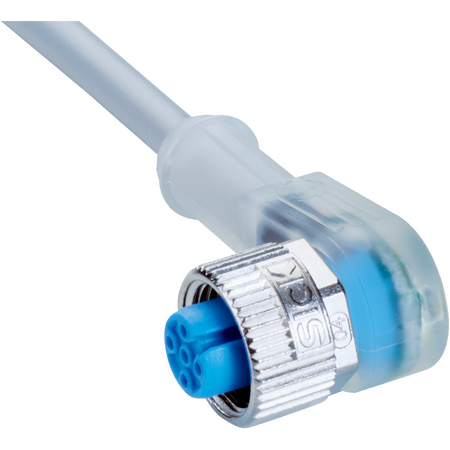

The SICK YI2A14-010VB3XLEAX is a durable M12 4-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial environments with chemical exposure and uncontaminated zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YI2A14-010VB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145720
Alternatively Known As: M12 4-pin female connector cable, Sensor connector cable, Industrial sensor cable with LED indicator
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature head: -25 °C to +85 °C
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin angled connector with screw locking plug
- Transparent TPU connector material with zinc die-cast nickel-plated locking nut
- 1 meter 4-wire PVC cable with gray jacket
- LED function indicator for status display
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: -25°C to +85°C for head, -30°C to +80°C stationary
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for PNP sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YI2A14-010VB3XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
