YI2A14-C60VB3XLEAX | Connectors and cables

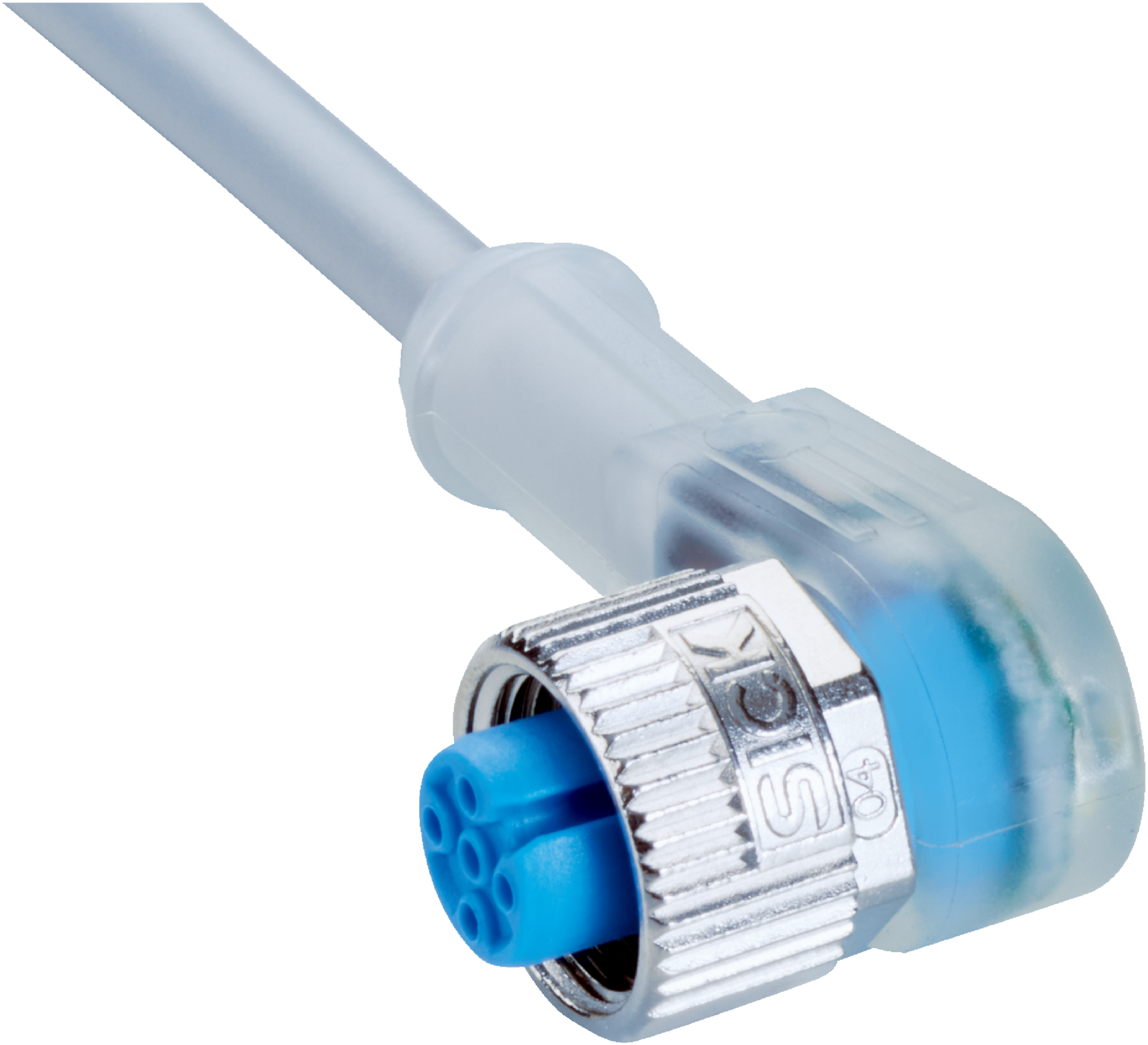

The SICK YI2A14-C60VB3XLEAX is a high-quality M12 female connector with flying leads cable, designed for sensor and actuator applications in industrial environments, featuring robust IP65/IP66K/IP67 protection and LED indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

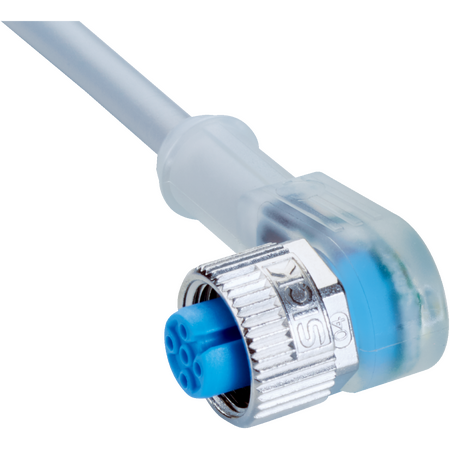

Product Name/Title: YI2A14-C60VB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145719
Alternatively Known As: M12 Female Connector Cable, Sensor Connector Cable, Industrial M12 Connector, SICK Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 30mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin, angled, A-coded connector
- Screw locking plug connector
- Transparent TPU connector material with zinc die-cast, nickel-plated locking nut
- 0.6 m gray PVC jacketed 4-wire cable with 5 mm diameter
- LED function indicator included
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for PNP sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce replacement frequency and waste
- Compliant with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YI2A14-C60VB3XLEAX connector and cable assembly is available for immediate purchase, ideal for industrial automation and sensor connection applications.
