YI8U14-010UA3M2A14 | Connectors and cables

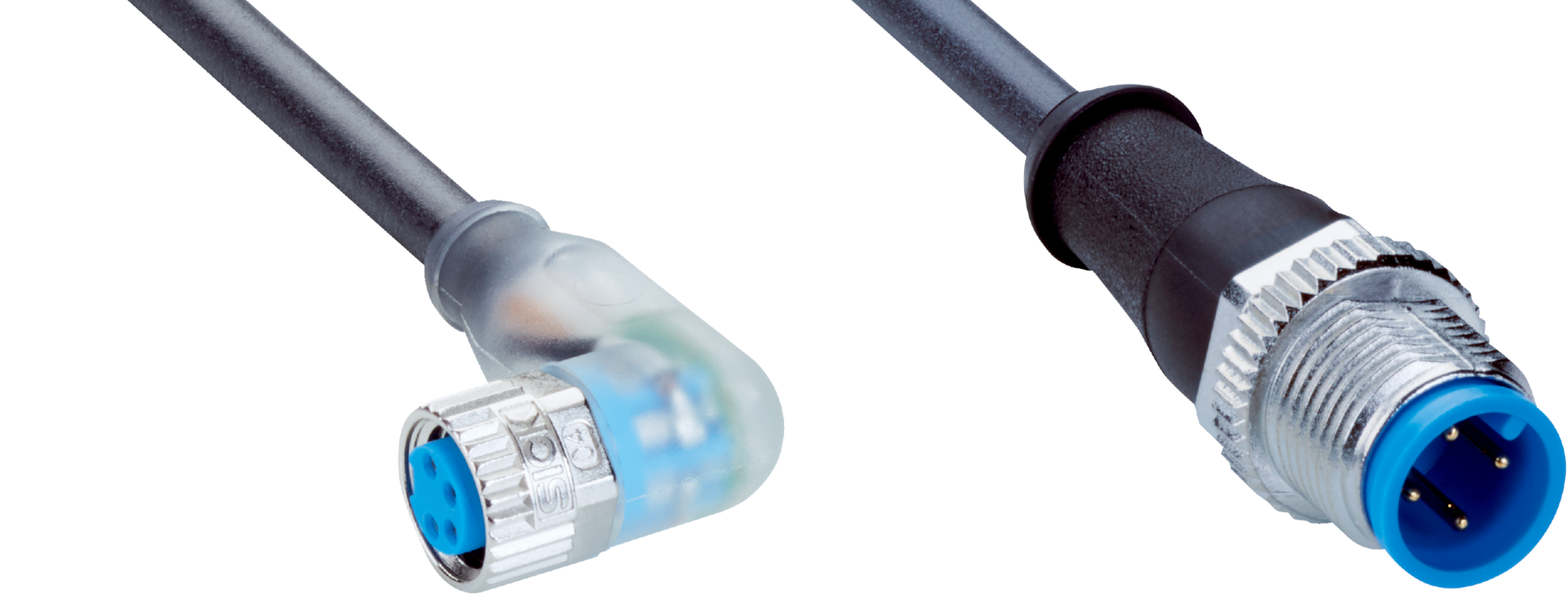

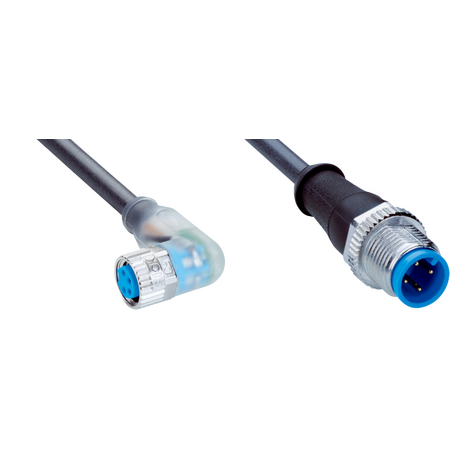

The SICK YI8U14-010UA3M2A14 is a high-quality sensor/actuator cable featuring M8 and M12 connectors, designed for reliable use in robot drag chain operations and zones with oils and lubricants, with robust IP65/IP66K/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YI8U14-010UA3M2A14 | Connectors and cables
Brand: SICK
SKU: 2145849
Alternatively Known As: M8 to M12 Sensor Cable, Sensor Actuator Cable M8 M12, SICK Sensor Cable, Robot Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: ≤ 4 A
- Torsion force: 180° per 1 m
- Torsion cycles: 2,000,000
- Signal type: Sensor/actuator cable
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 1000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled, A-coded
- Male connector, M12, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 1 m, 4-wire, PUR, halogen-free, black jacket
- Cable diameter: 4.5 mm, conductor cross section: 0.25 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC, test voltage: 2,500 V AC
- Current loading up to 4 A
- Torsion force 180° per 1 m, torsion cycles 2,000,000
- Suitable only for PNP sensors
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections to ensure proper electrical and mechanical integrity.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YI8U14-010UA3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable sensor connections.
