YI8U14-010VA3XLEAX | Connectors and cables

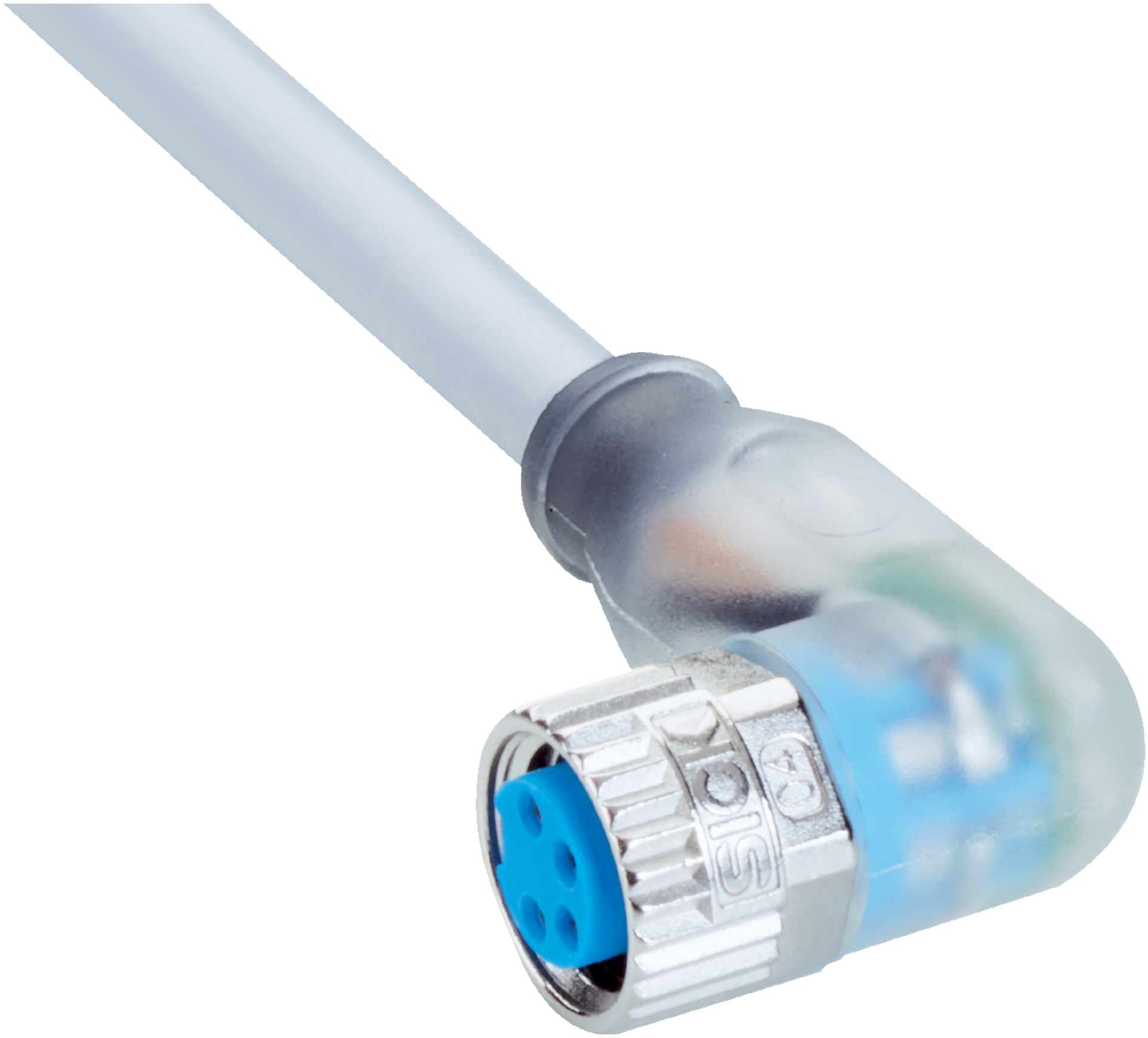

The SICK YI8U14-010VA3XLEAX is a 1-meter M8 4-pin female connector cable with flying leads, designed for sensor and actuator applications in chemical and uncontaminated zones, featuring IP65/IP66K/IP67 protection and LED indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

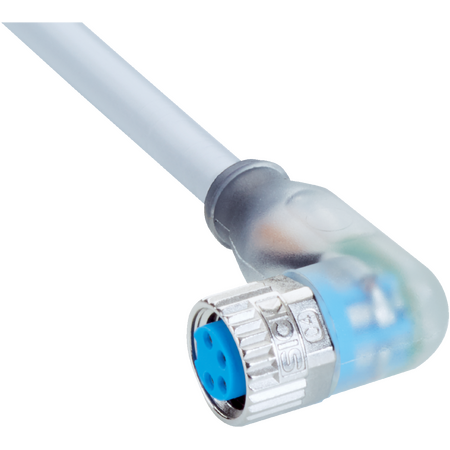

Product Name/Title: YI8U14-010VA3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145859
Alternatively Known As: M8 4-pin female sensor cable, M8 sensor connector cable, SICK sensor cable, PNP sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 1 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 1000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, A-coded
- Screw connection locking plug
- Transparent TPU connector material
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 1 m, 4-wire PVC cable with gray jacket
- Unshielded cable with 0.25 mm² conductor cross section
- LED function indicator
- Enclosure rating IP65 / IP66K / IP67
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones
- Suitable for PNP sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce environmental impact by extending product life and enhancing safety.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YI8U14-010VA3XLEAX connector cable is available for immediate purchase, ideal for sensor and actuator applications in industrial and chemical environments.
