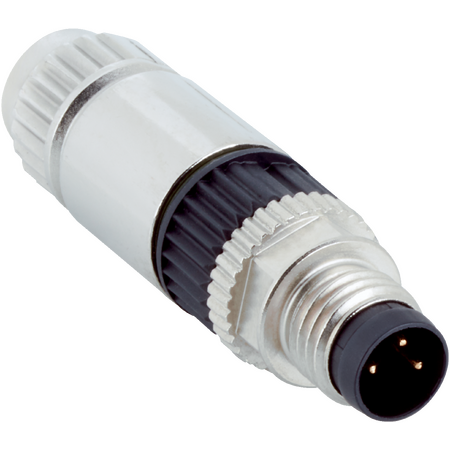

YM08U13-1434K2551A | Connectors and cables

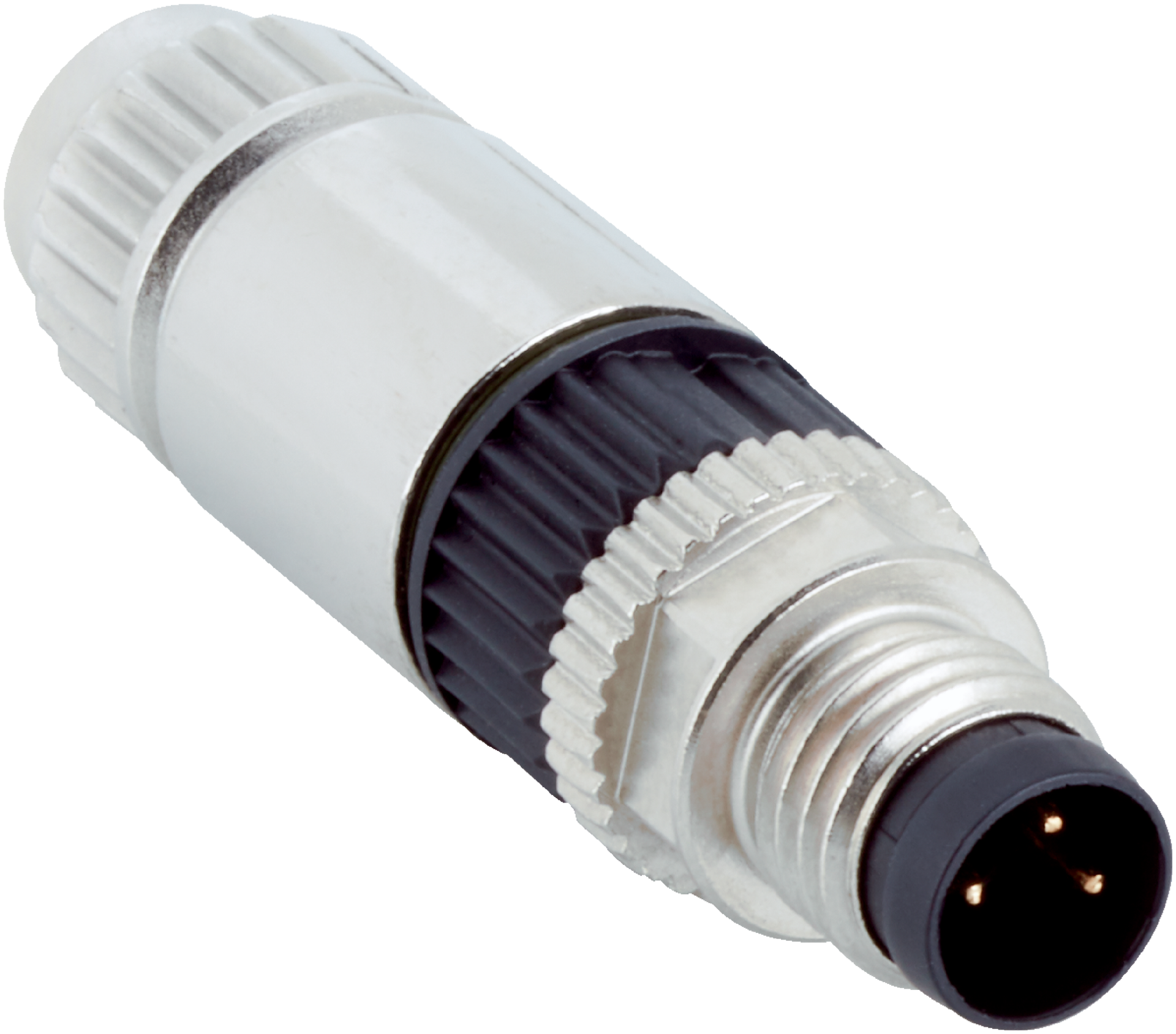

The SICK YM08U13-1434K2551A is a robust M8 3-pin male connector cable designed for sensor and actuator applications, featuring IP67 protection and high durability for industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM08U13-1434K2551A | Connectors and cables
Brand: SICK
SKU: 2109286
Alternatively Known As: M8 3-pin male sensor cable, M8 connector cable, Industrial sensor connector cable
Technical Specifications
- Connection type head A: Male connector, M8, 3-pin, straight, A-coded
- Connection type: IDC quick connection
- Locking plug connector: Screw connection
- Connector material: PA
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: TPU
- Tightening torque: 0.4 Nm
- Width across flats: 9 mm
- Permitted cross-section: 0.14 mm² to 0.34 mm²
- Reference voltage: 32 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 10 mΩ
- Dimensions (H x L x W): 20mm x 100mm x 9mm
- Weight: 0.1 kg
Key Features
- Male M8, 3-pin, straight, A-coded connector
- IDC quick connection with screw locking plug connector
- Connector made of durable PA material with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material TPU ensuring IP67 enclosure rating
- Operating temperature range from -40°C to +85°C
- Rated for 4 A current loading and 32 V DC reference voltage
- High insulation resistance of 100 MΩ and overvoltage category III
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Machine building and factory automation
- Robotics and control systems requiring reliable sensor cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and IP67 rating reduce replacement frequency and electronic waste
- Compliant with China RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM08U13-1434K2551A connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
