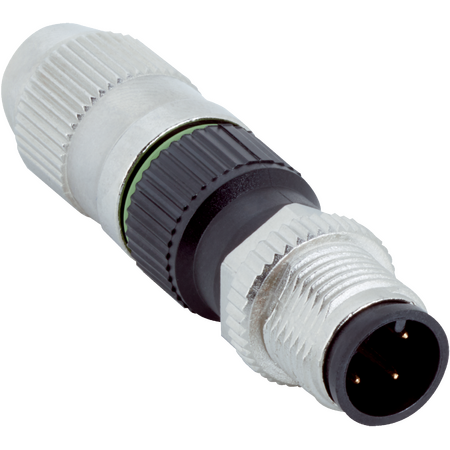

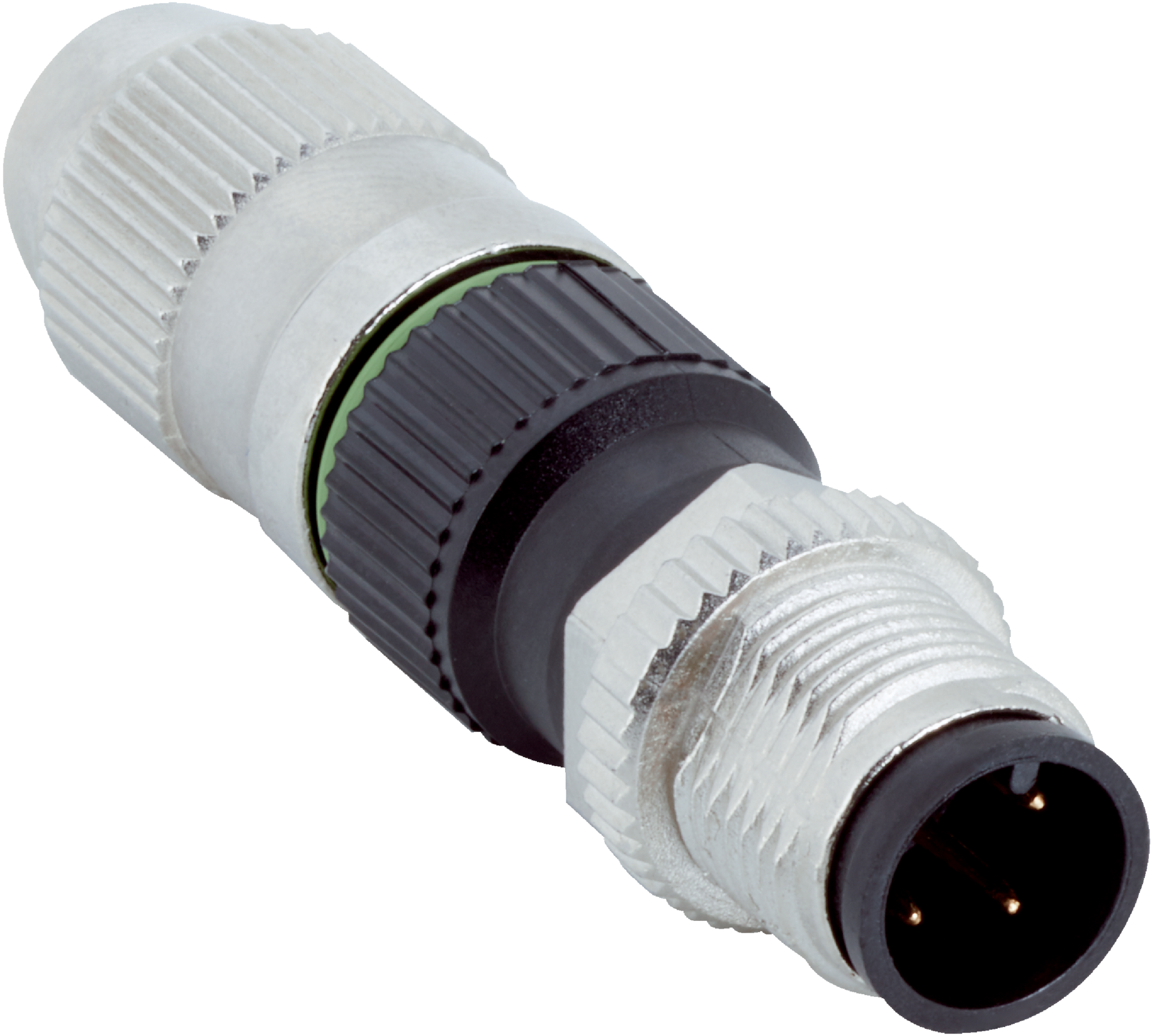

YM12U13-2550K4051A | Connectors and cables
The SICK YM12U13-2550K4051A is a robust M12 3-pin male connector cable designed for sensor and actuator applications in environments exposed to oils and lubricants, featuring IP67 protection and high durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM12U13-2550K4051A | Connectors and cables
Brand: SICK
SKU: 2109290
Alternatively Known As: M12 3-pin male connector cable, Sensor actuator cable M12, IP67 M12 connector cable
Technical Specifications
- Connection type head A: Male connector, M12, 3-pin, straight, A-coded
- Connection type: IDC quick connection
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: PUR
- Tightening torque: 0.6 Nm
- Permitted cross-section: 0.25 mm² to 0.5 mm²
- Reference voltage: 32 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants
- Enclosure rating: IP67
- Operating temperature: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 20mm x 100mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 3-pin, straight, A-coded
- IDC quick connection with screw locking plug connector
- Connector material made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material PUR ensuring IP67 enclosure rating
- Operating temperature range from -25 °C to +85 °C
- Contamination rating 3 for harsh environments
- Current loading capacity of 4 A
- Rated impulse voltage of 0.8 kV
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and sealing for IP67 rating.
Applications
- Sensor and actuator cable applications
- Zones with oils and lubricants exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and high IP rating reduce waste and replacement frequency
- Compliant with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM12U13-2550K4051A M12 3-pin male connector cable is available for immediate purchase, ideal for industrial sensor and actuator connections in harsh environments.
