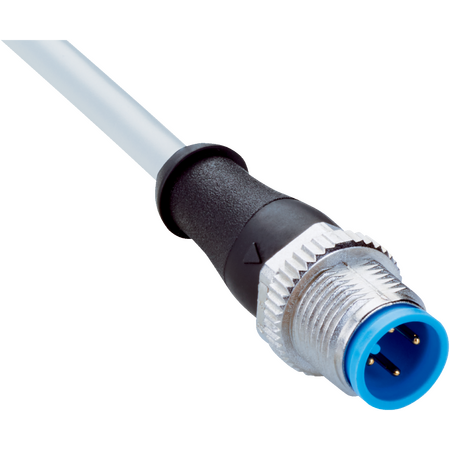

YM2A14-030VB3XLEAX | Connectors and cables
The SICK YM2A14-030VB3XLEAX is a durable M12 4-pin male connector sensor/actuator cable with a 3-meter PVC jacketed cable, designed for industrial automation applications requiring high protection and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A14-030VB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145713
Alternatively Known As: M12 4-pin male sensor cable, M12 sensor connector cable, actuator cable M12 4-pin, industrial sensor cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with zinc die-cast nickel-plated locking nut
- 3 m, 4-wire PVC cable with gray jacket
- Unshielded cable with 0.34 mm² conductor cross section
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Current loading up to 4 A
- Rated impulse voltage 2.5 kV
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A14-030VB3XLEAX M12 4-pin male connector sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
