YM2A15-050UB5XLEAX | Connectors and cables

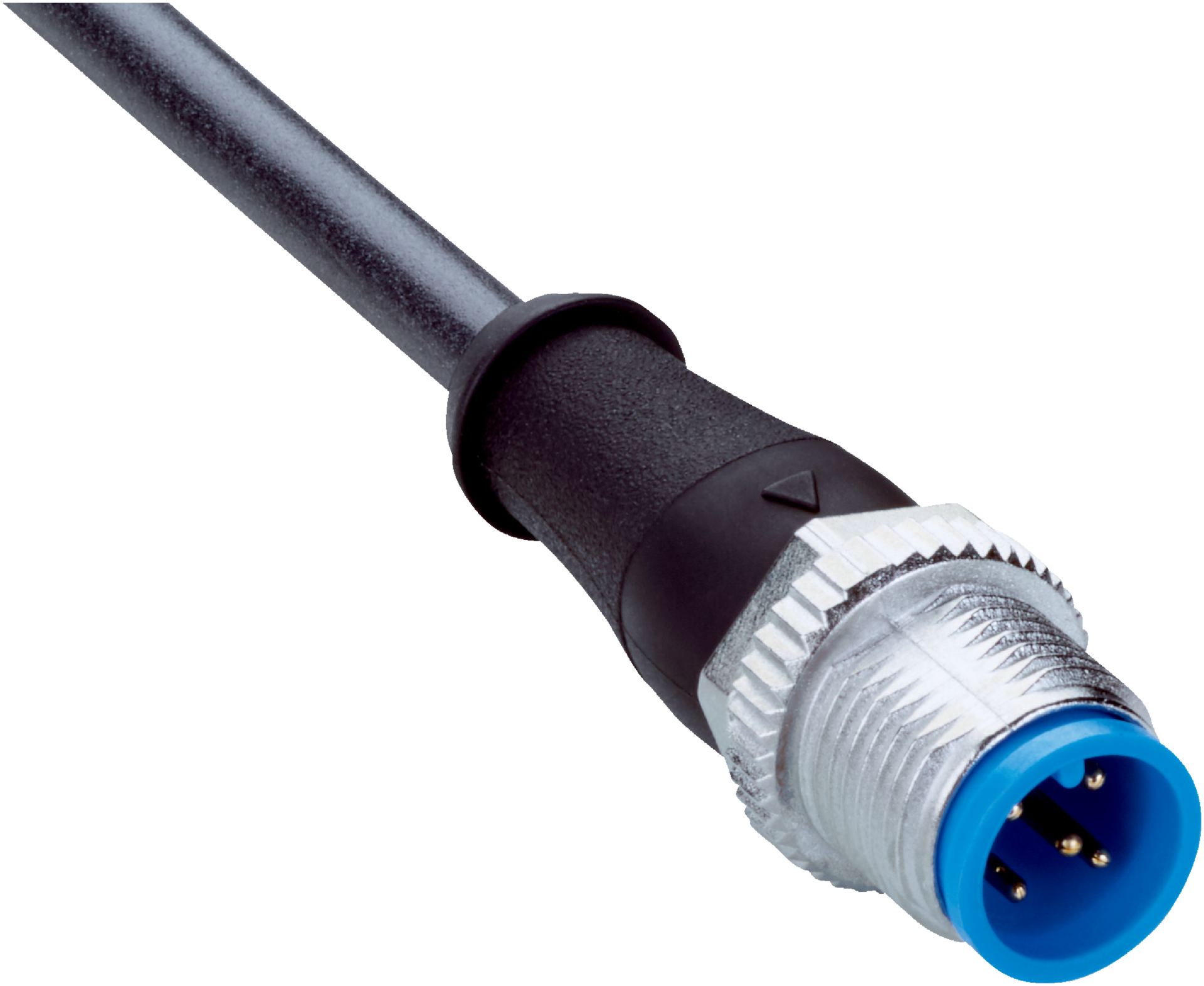

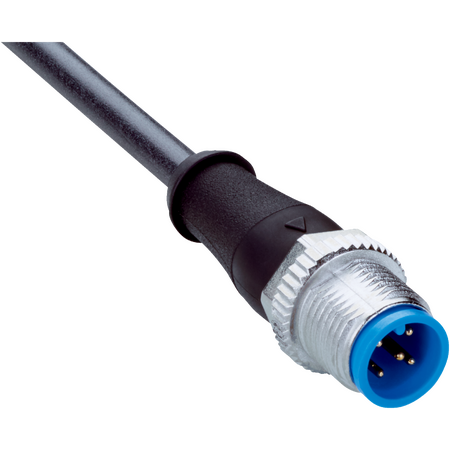

The SICK YM2A15-050UB5XLEAX is a robust M12 5-pin male connector with a 5-meter PUR halogen-free cable designed for sensor and actuator applications in industrial environments including robotics and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A15-050UB5XLEAX | Connectors and cables
Brand: SICK
SKU: 2095842
Alternatively Known As: M12 5-pin male connector cable, Sensor actuator cable M12, PUR cable connector, Industrial sensor cable
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 5-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with zinc die-cast, nickel-plated locking nut
- 5 m PUR halogen-free cable, 5-wire, black jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 and IEC 60332 standards
- Torsion capability of 180° per meter with 2,000,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and wiring standards to ensure proper connection and safety compliance.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones
- Zones with oils and lubricants
- Robotics
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design extends product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK YM2A15-050UB5XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring durable and reliable connections.
