YM2A15-200VB5XLEAX | Connectors and cables

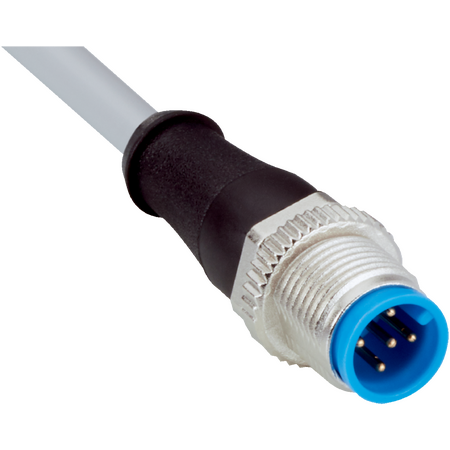

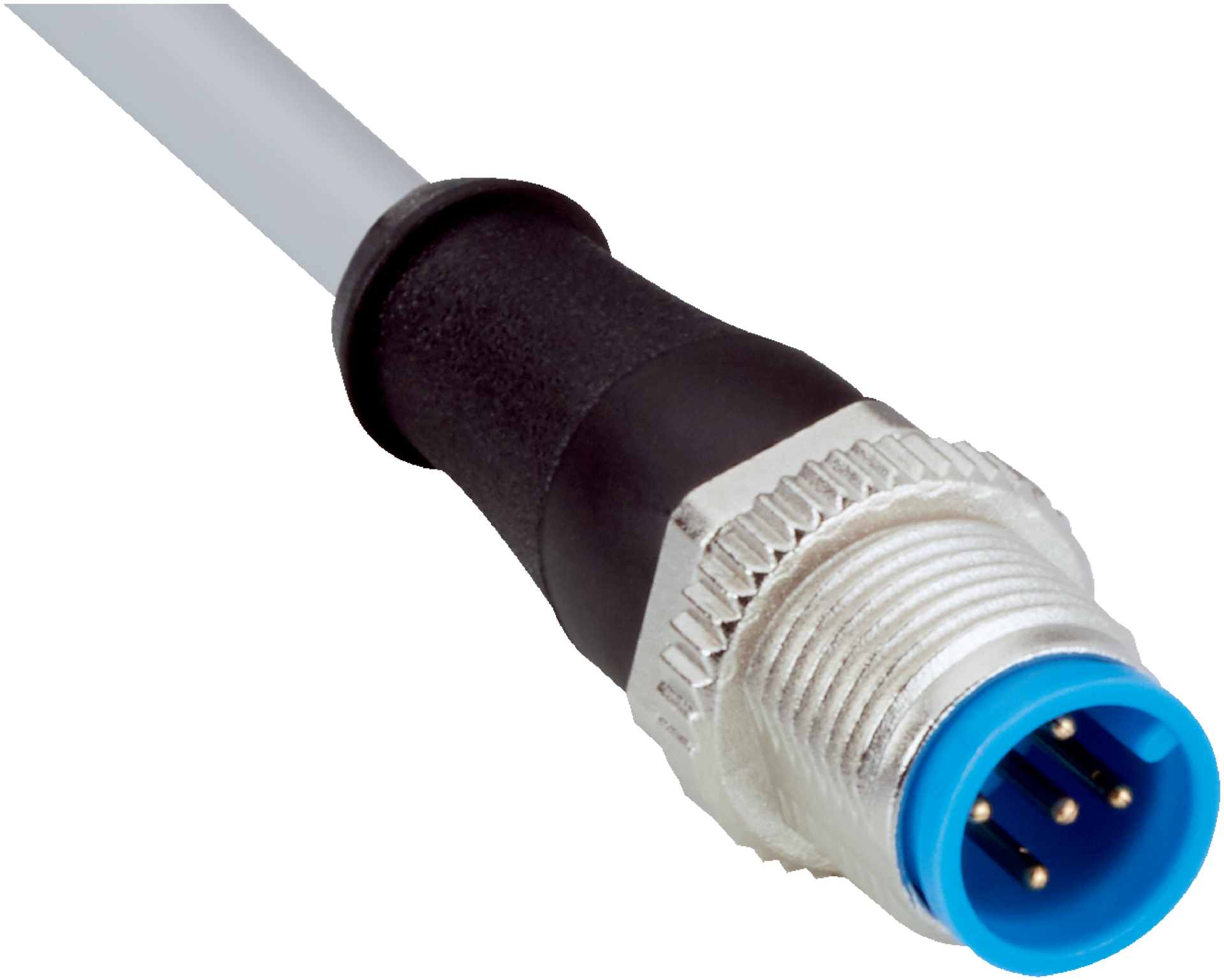

The SICK YM2A15-200VB5XLEAX is a durable M12 5-pin male connector with a 20 m flying leads cable, designed for sensor and actuator applications in industrial environments with high chemical resistance and robust IP65/IP66K/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A15-200VB5XLEAX | Connectors and cables
Brand: SICK
SKU: 2110629
Alternatively Known As: M12 5-pin male connector cable, Sensor actuator cable M12, Industrial connector cable 20m, SICK sensor cable
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 20 m, 5-wire, PVC
- Jacket material: PVC, color gray
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: 10,000,000
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 125 V AC / 125 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12, 5-pin, straight, A-coded connector with screw locking plug
- 20 m long, 5-wire PVC cable with gray jacket
- High durability with 10,000,000 bending cycles and 2,000,000 torsion cycles
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Rated for 300 V AC nominal voltage and 4 A current loading
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for flexible and stationary cable installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and flame retardant materials reduce replacement frequency and waste
- High resistance to chemicals and environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A15-200VB5XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor/actuator applications requiring robust and reliable cabling.
