YM2A24-030UB4XLEAX | Connectors and cables

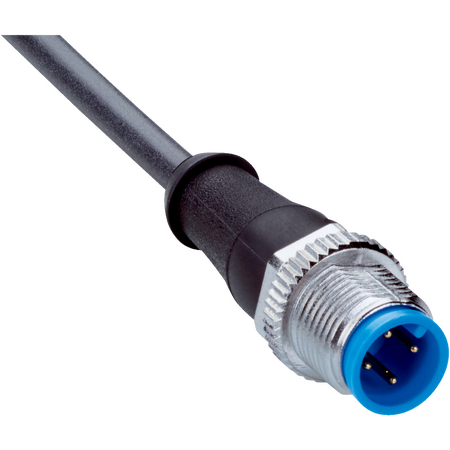

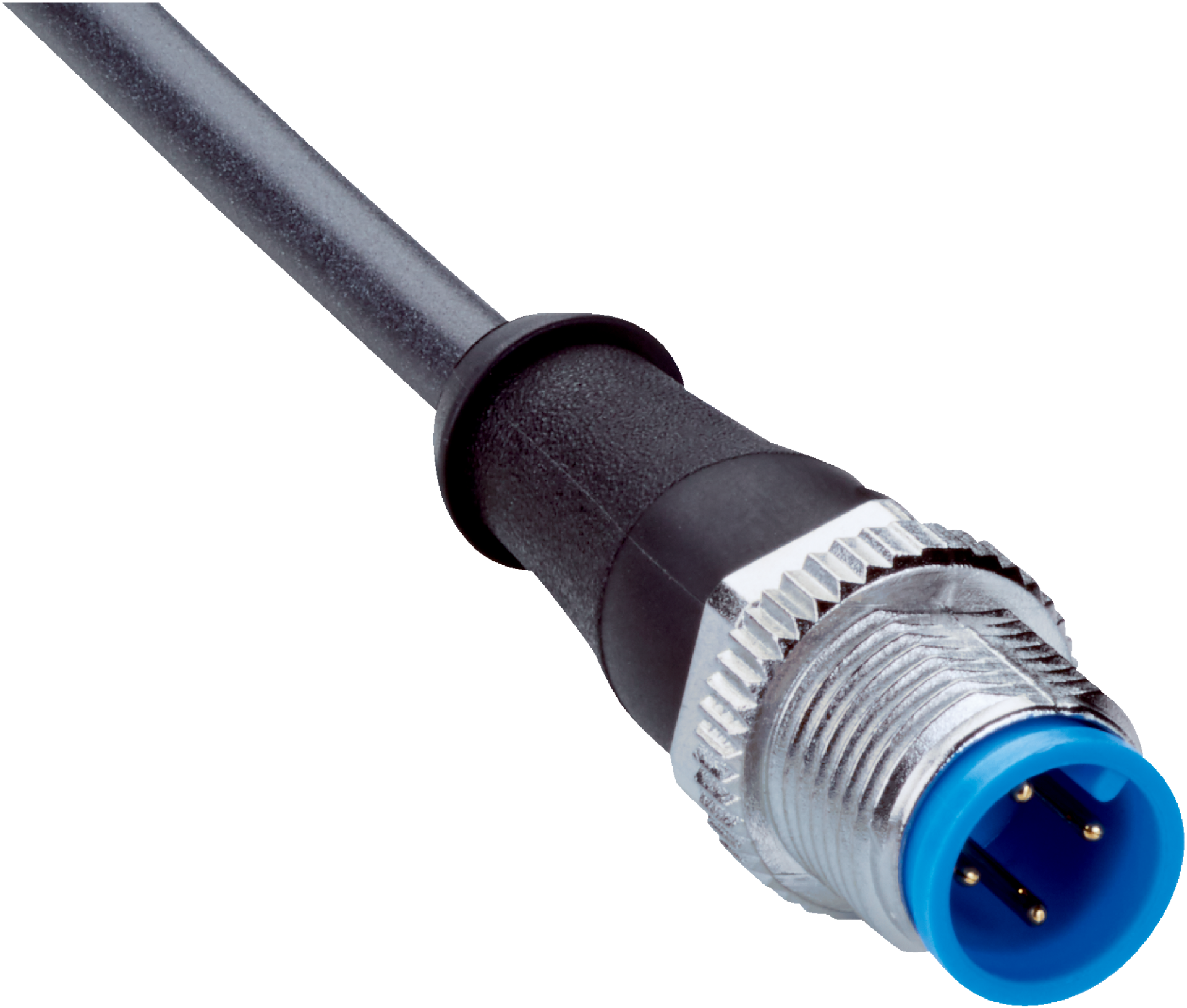

The SICK YM2A24-030UB4XLEAX is a durable M12 4-pin male connector sensor/actuator cable with a 3-meter PUR halogen-free cable, designed for industrial applications including robotics and drag chain operation with high IP protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A24-030UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2145739
Alternatively Known As: M12 4-pin male connector cable, sensor actuator cable, PUR cable connector, industrial sensor cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 3 m, 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Head temperature range: -25 °C to +85 °C
- Bending cycles: 10,000,000
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded
- Screw connection locking plug
- Cable: 3 m, 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Current loading: ≤ 4 A
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YM2A24-030UB4XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
