YM2A25-030UB6XLEAX | Connectors and cables

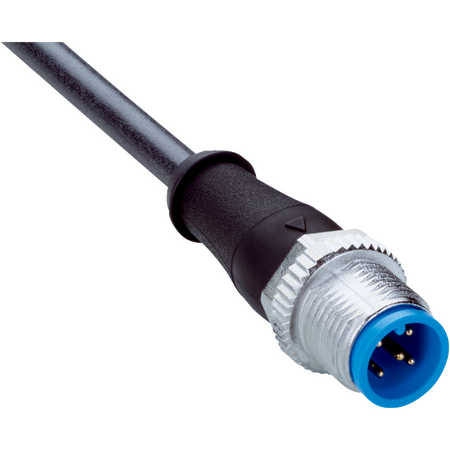

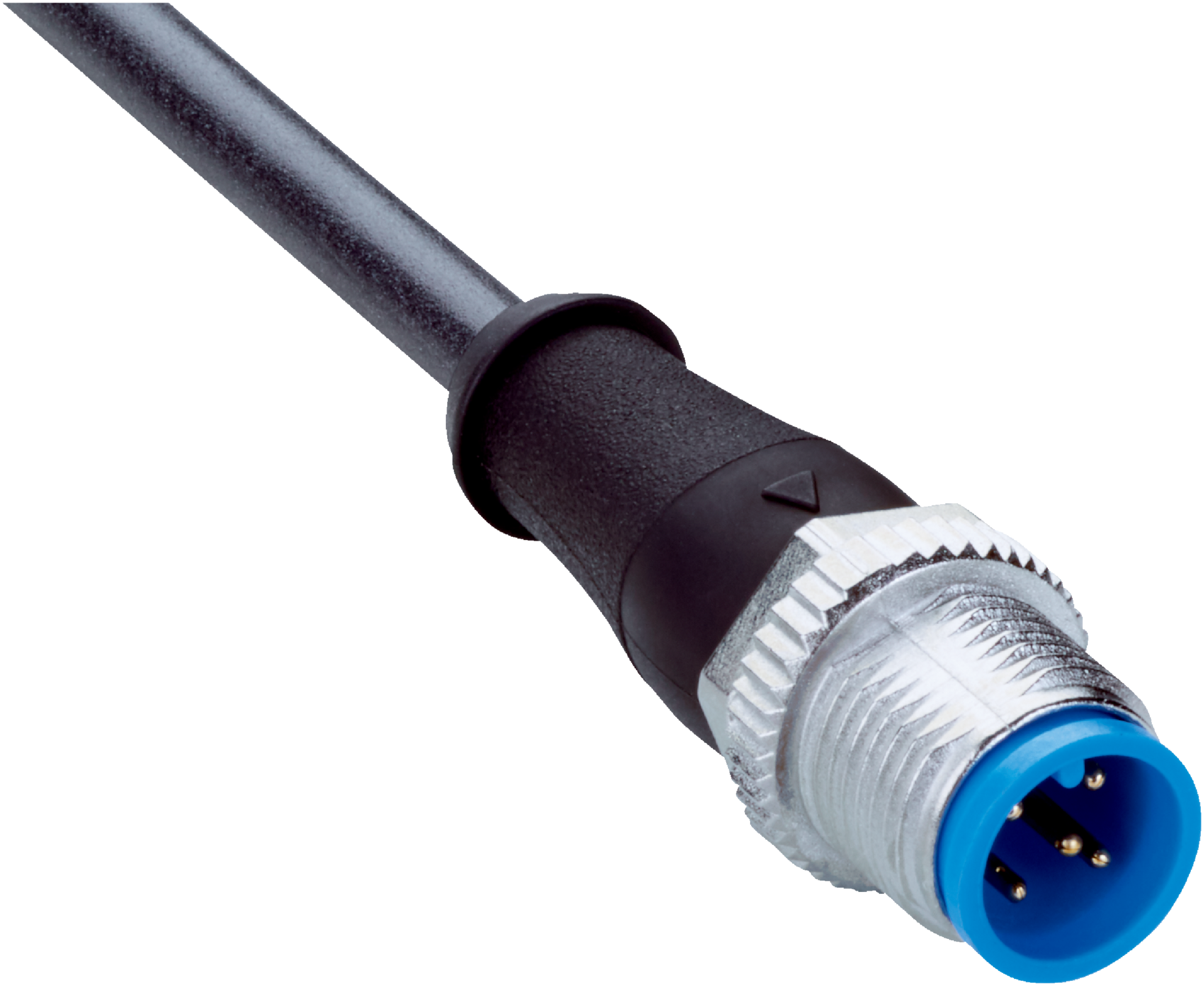

The SICK YM2A25-030UB6XLEAX is a durable M12 5-pin male connector with a 3-meter shielded PUR cable, designed for sensor and actuator applications in industrial environments including robot and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A25-030UB6XLEAX | Connectors and cables
Brand: SICK
SKU: 2145619
Alternatively Known As: M12 5-pin male connector cable, Sensor actuator cable M12, PUR shielded cable connector
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 5.6 mm
- Conductor cross section: 5 x 0.34 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Cycles per minute: 35
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 5-pin, straight, A-coded connector
- Screw connection locking plug
- Shielded 3 m PUR halogen-free cable with 5 wires
- High bending and torsion cycle durability (5,000,000 bending cycles, 2,000,000 torsion cycles)
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones and zones with oils and lubricants
- Suitable for robot and drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact in case of fire
- Durable materials and high cycle ratings extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YM2A25-030UB6XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
