YM2AA5-030UB4F2AA8 | Connectors and cables

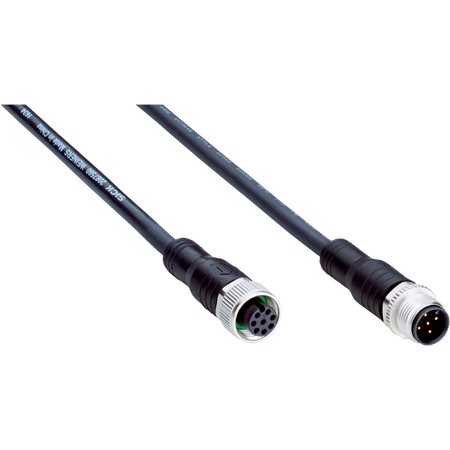

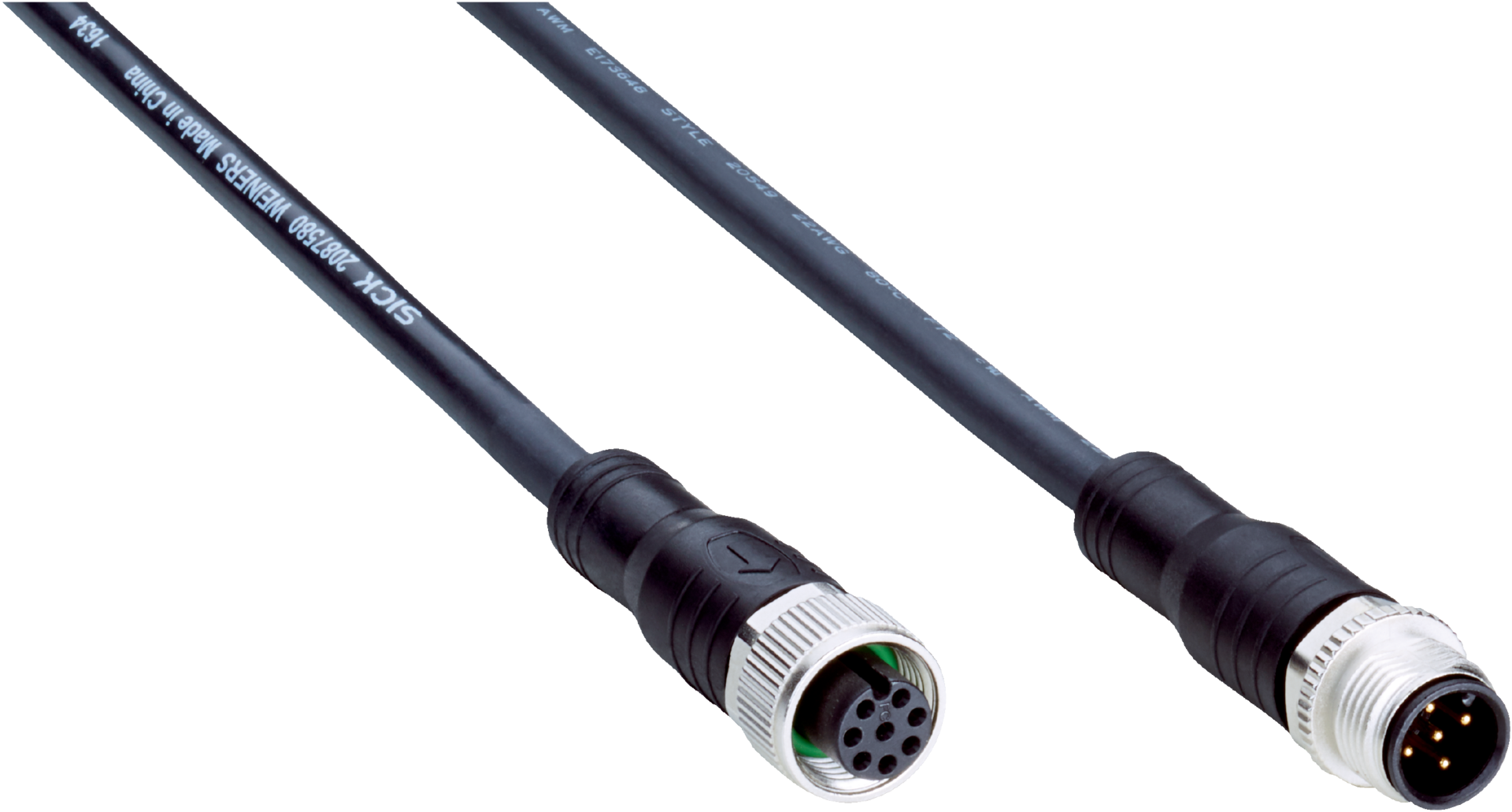

The SICK YM2AA5-030UB4F2AA8 is a shielded M12 connector cable with 5-pin male to 8-pin female connectors, designed for use in industrial environments including robot drag chain operations and zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2AA5-030UB4F2AA8 | Connectors and cables
Brand: SICK
SKU: 2087580
Alternatively Known As: M12 5-pin to 8-pin connector cable, Shielded M12 connector cable, Industrial M12 connector cable
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, straight, A-coded
- Connection type head B: Female connector, M12, 8-pin, straight, A-coded
- Cable length: 3 m
- Cable wires: 4-wire
- Jacket material: PUR
- Jacket color: Black
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 5-pin, straight, A-coded
- Female connector, M12, 8-pin, straight, A-coded
- 3 m length, 4-wire PUR cable
- Shielded cable for interference protection
- Flame retardant jacket material compliant with UL 1581 VW1, CSA FT1, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable PUR jacket material extends product life reducing waste
- Shielding reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2AA5-030UB4F2AA8 connector cable is available for immediate purchase, ideal for industrial automation and robotics applications.
