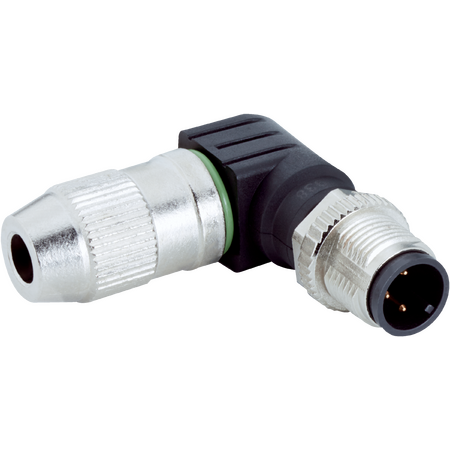

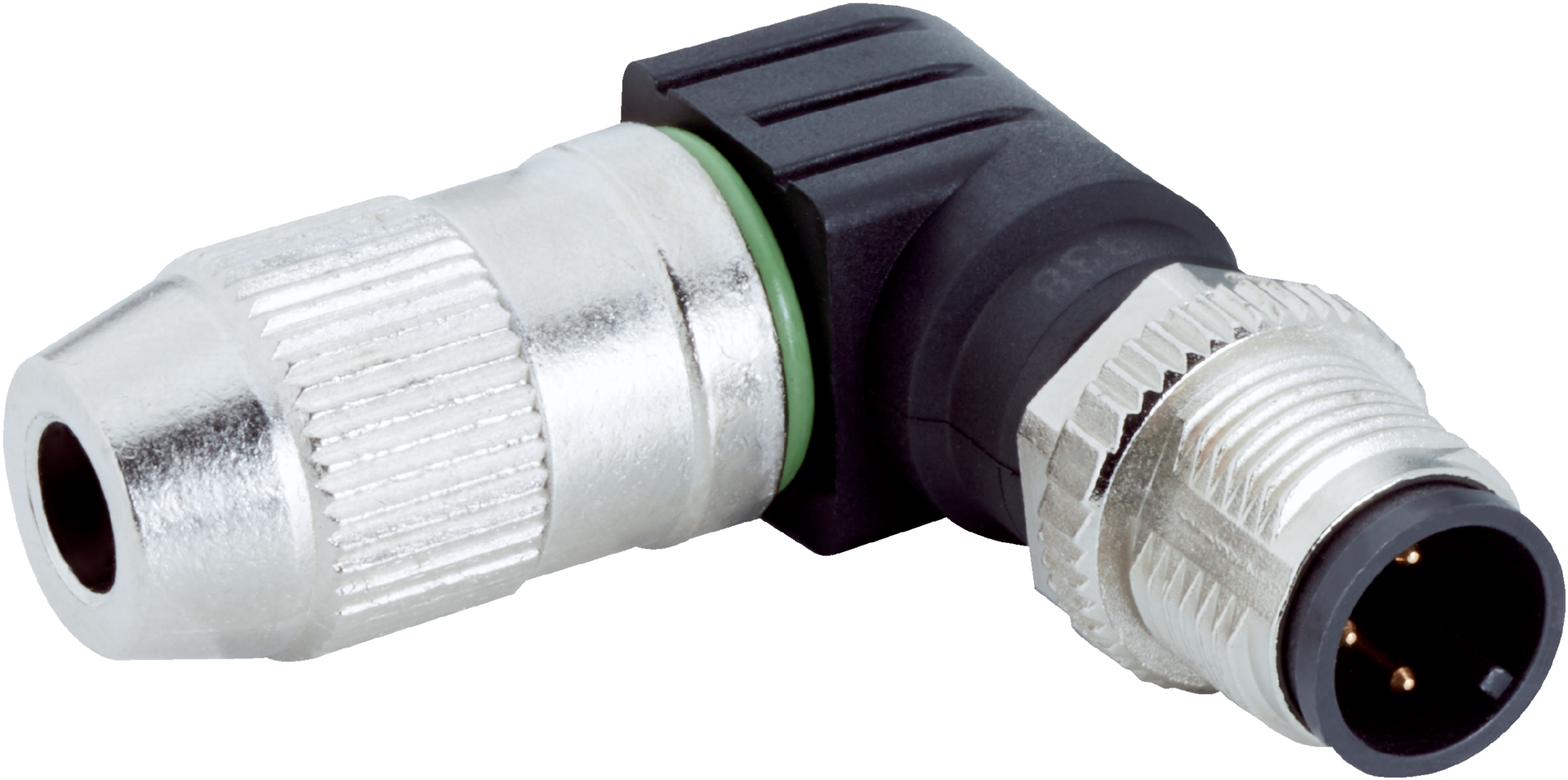

YN12U13-2550K4051A | Connectors and cables
The SICK YN12U13-2550K4051A is a durable M12 3-pin male connector cable designed for sensor and actuator applications in harsh environments including zones with oils and lubricants, featuring IP67 protection and robust materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YN12U13-2550K4051A | Connectors and cables
Brand: SICK
SKU: 2109294
Alternatively Known As: M12 3-pin male connector cable, Sensor actuator cable M12, IP67 M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 3-pin, angled, A-coded
- Connection type: IDC quick connection
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: PUR
- Tightening torque: 0.6 Nm
- Width across flats: 13 mm
- Permitted cross-section: 0.25 mm² to 0.5 mm²
- Reference voltage: 32 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants
- Authorizations: CE
- Enclosure rating: IP67
- Operating temperature: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 20mm x 100mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 3-pin, angled, A-coded
- IDC quick connection with screw locking plug connector
- Connector material made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material made of PUR
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +85 °C
- Contamination rating of 3
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and IP67 rating reduce the need for frequent replacements, minimizing waste.
- Compliant with China RoHS, ensuring reduced hazardous substances.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YN12U13-2550K4051A connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications in harsh environments.
