YN2A14-020UB3XLEAX | Connectors and cables

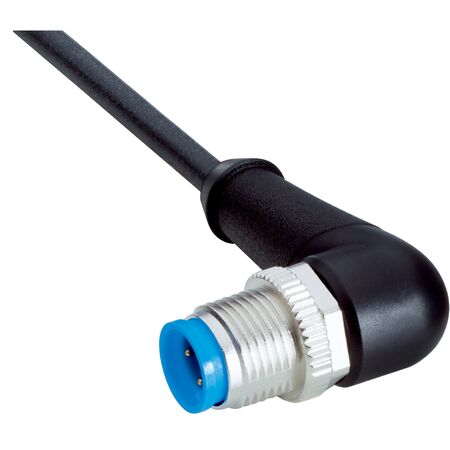

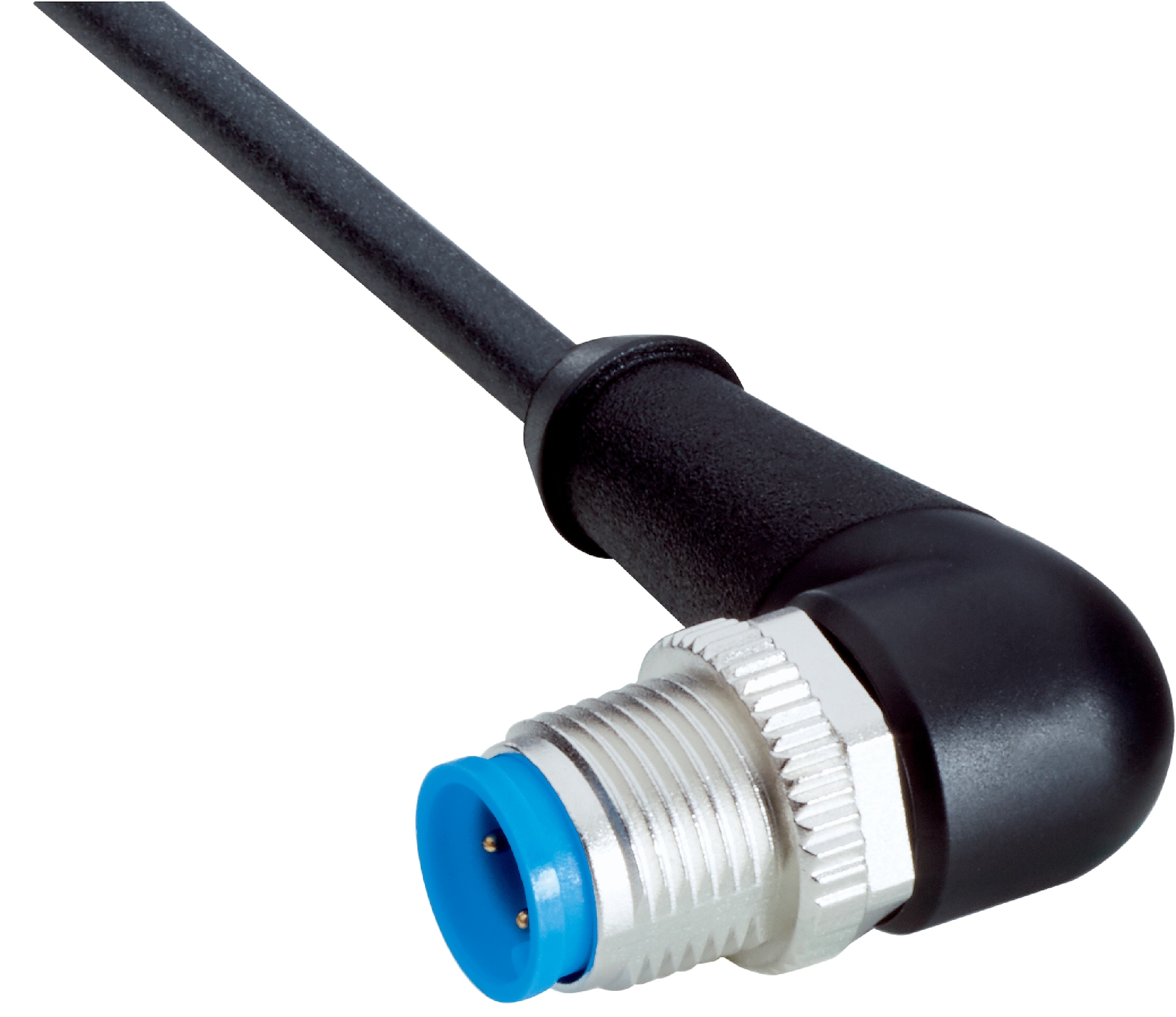

The SICK YN2A14-020UB3XLEAX is a durable M12 4-pin male connector with a 2 m PUR halogen-free cable, designed for sensor and actuator applications in industrial environments with high mechanical and environmental demands.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YN2A14-020UB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145666
Alternatively Known As: M12 4-pin male connector cable, sensor connector cable, PUR cable connector, industrial sensor cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Bending cycles: 10,000,000
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin angled A-coded connector with screw locking
- 2 m PUR halogen-free cable with 4 wires and 0.34 mm² conductor cross section
- High durability with 10,000,000 bending cycles and 2,000,000 torsion cycles
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Robotics and drag chain operation
- Use in uncontaminated zones and zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2A14-020UB3XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
