YN2A14-030UB3XLEAX | Connectors and cables

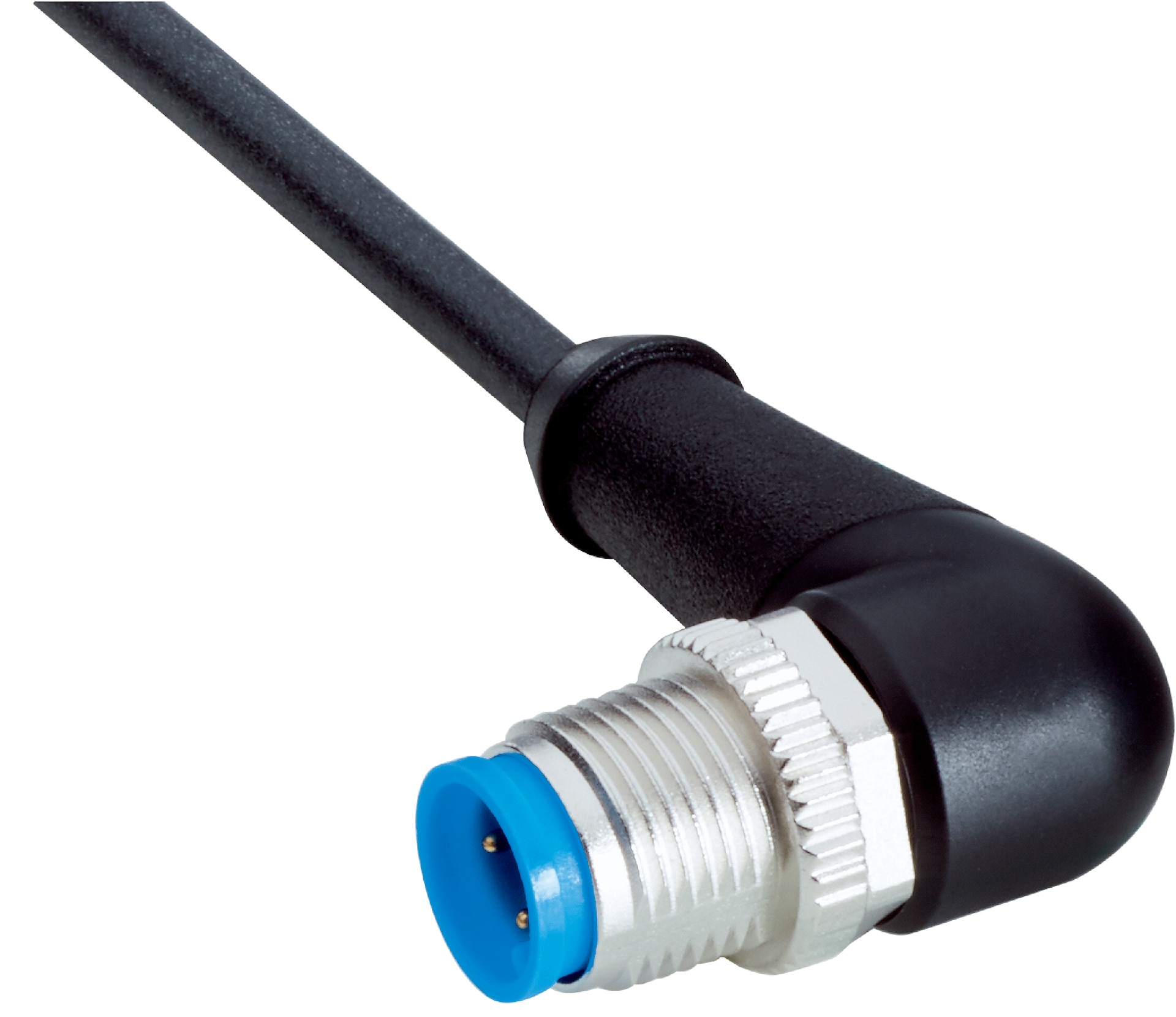

The SICK YN2A14-030UB3XLEAX is a durable M12 4-pin male connector with a 3-meter PUR halogen-free cable designed for sensor and actuator applications in industrial environments including robots and drag chains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

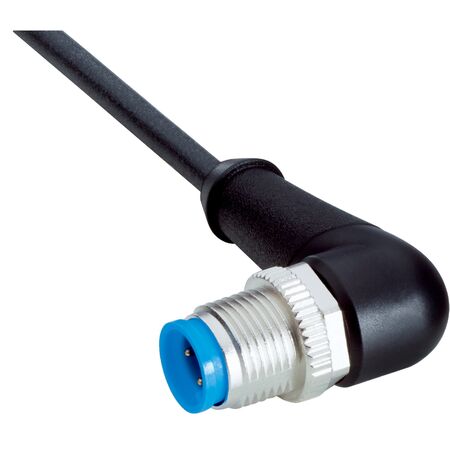

Product Name/Title: YN2A14-030UB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145667
Alternatively Known As: M12 4-pin male sensor cable, SICK sensor connector cable, M12 angled connector with flying leads
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin angled A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 3 m PUR halogen-free cable, 4-wire, black jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
- UL File No. E335179 certified
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones
- Zones with oils and lubricants
- Robot and drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YN2A14-030UB3XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and flexible cabling.
