YN2A1D-020UV1XLEAX | Connectors and cables

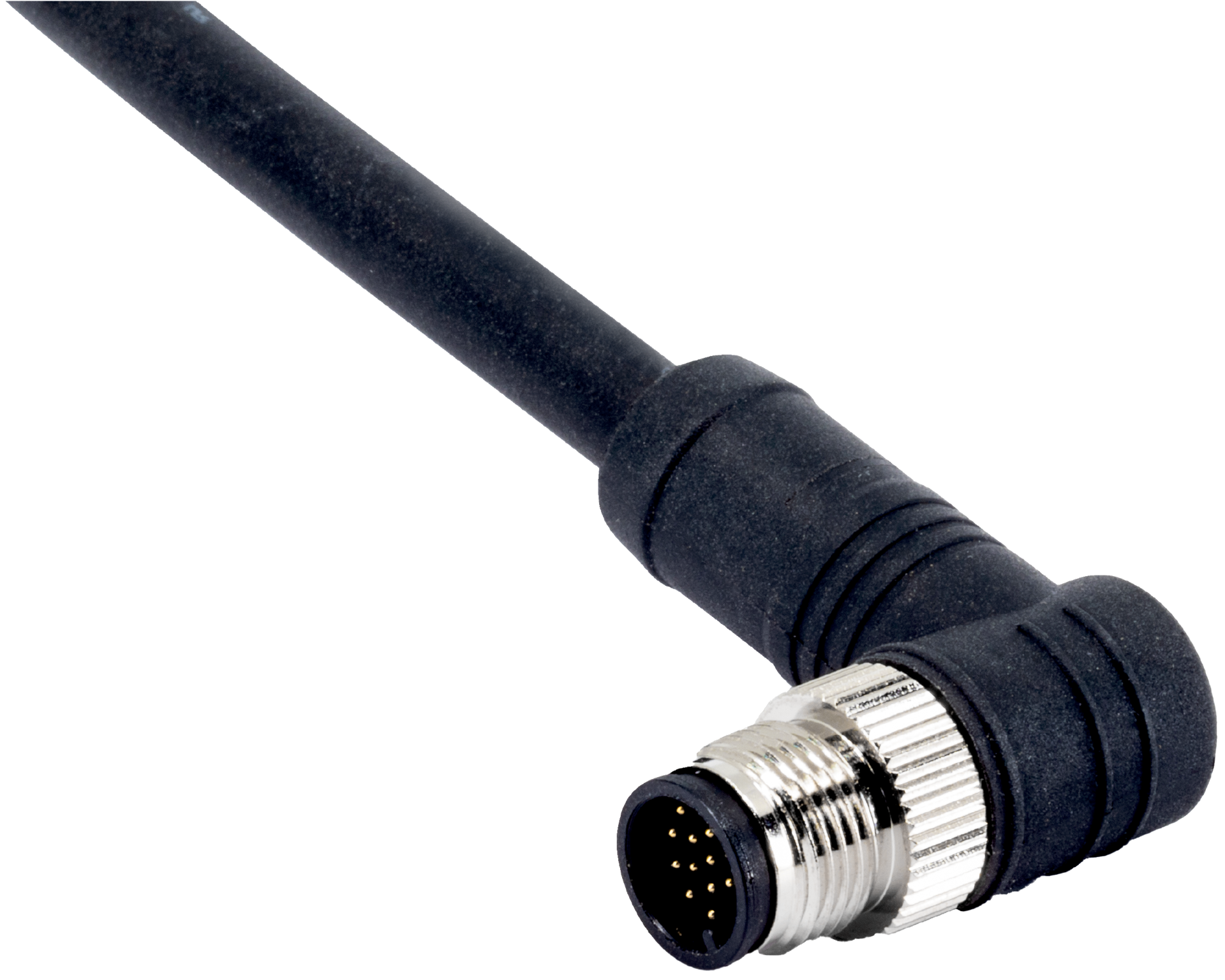

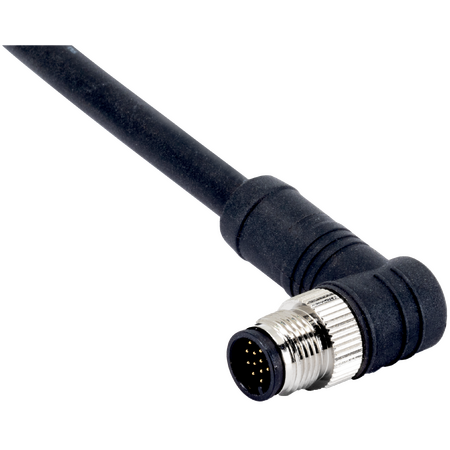

The SICK YN2A1D-020UV1XLEAX is a 2-meter sensor/actuator cable featuring a 17-pin M12 male angled connector and flying leads, designed for robust industrial applications with IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YN2A1D-020UV1XLEAX | Connectors and cables
Brand: SICK
SKU: 2118013
Alternatively Known As: M12 17-pin sensor cable, PUR sensor cable, actuator connection cable, industrial sensor connector cable
Technical Specifications
- Connection type head A: Male connector, M12, 17-pin, angled
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Cable length: 2 m
- Cable wires: 17-wire
- Jacket material: PUR
- Jacket color: Black
- Cable diameter: 7 mm
- Conductor cross section: 0.14 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature flexible use: -20 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 1.5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.1 kg
Key Features
- Male M12, 17-pin angled connector on head A
- Flying leads on head B
- Screw locking plug connector
- 2 meter length, 17-wire PUR cable
- Black PUR jacket with 7 mm diameter
- Unshielded cable
- IP67 enclosure rating for dust and water protection
- Operating temperature range: -20°C to +80°C (flexible use), -40°C to +80°C (stationary)
- Contamination rating 3
- Rated impulse voltage 0.8 kV
- Current loading up to 1.5 A
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical standards to ensure proper connection and safety.
Applications
- Sensor and actuator connections in uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket extends cable life reducing waste
- IP67 rating protects against environmental ingress, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YN2A1D-020UV1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
