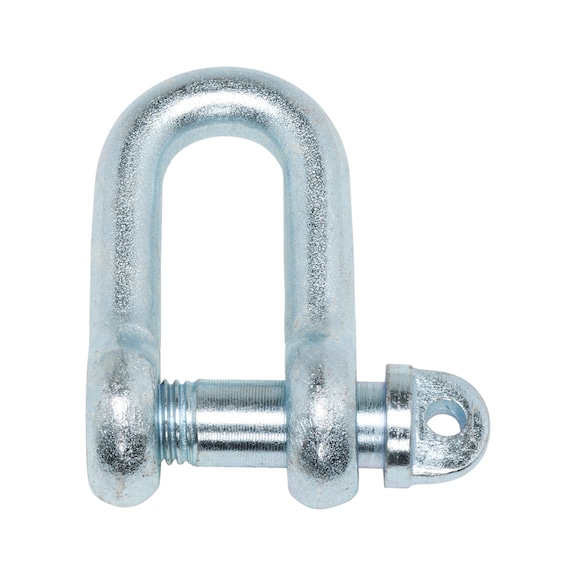

Zinc-Plated Shackle SHKL A SZ025 | 250 kg Load Capacity | Curved Design | @Pack of 25 | by Wurth
The Zinc-Plated Shackle SHKL A SZ025 is designed for towing and load securing, featuring a robust 250 kg load capacity and a corrosion-resistant zinc-plated steel construction. Ideal for automotive and industrial applications, this shackle ensures safety and compliance, making it a reliable choice for trained personnel in need of secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Zinc-Plated Shackle SHKL A SZ025 | 250 kg Load Capacity | Curved Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 523025
Alternatively Known As: Towing Shackle, Zinc-Plated Shackle, Steel Shackle, Load Shackle, Connection Shackle
Technical Specifications
- Load capacity: 250 kg

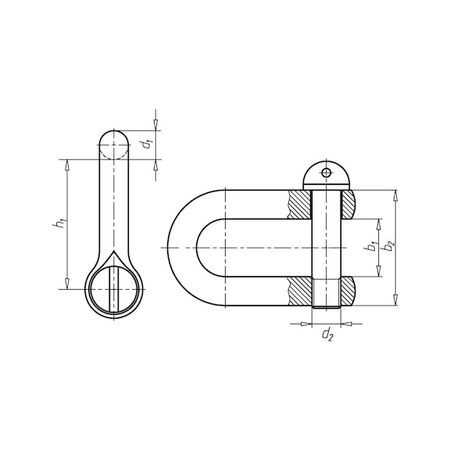

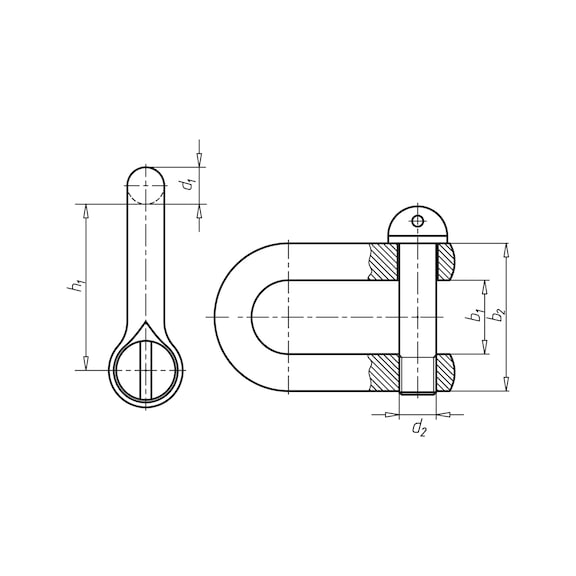

- Thread type x shackle bolt diameter: M8 mm
- Shackle internal width (b1): 11 mm
- Shackle external width (b2): 25 mm
- Shackle diameter (d1): 8 mm
- Shackle-bolt diameter (d2): 8 mm
- Internal shackle height (centre bolt) (h1): 28 mm
- Design: Curved
- Material: Steel
- Surface: Zinc plated
- Form: A
- Nominal size: 0.25
- RoHS-compliant: Yes
- Dimensions (H x L x W): 28mm x 50mm x 25mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel for corrosion resistance
- Curved design for sizes M5 to M12
- Forged design for sizes M16 to M48
- Hot-dip galvanized from M48 size
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with towing and load securing equipment to ensure safety and compliance.
Applications
- Towing motor vehicles
- Lengthening ropes and chains
- Connection element for towing and securing loads
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides long-lasting corrosion protection, reducing the need for frequent replacements and waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Shackle SHKL A SZ025 BT ZN PIN80 25 PCS is available for immediate purchase, ideal for towing and load securing applications in automotive and industrial settings.
