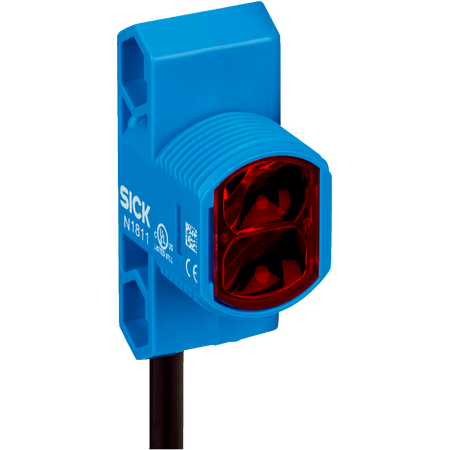

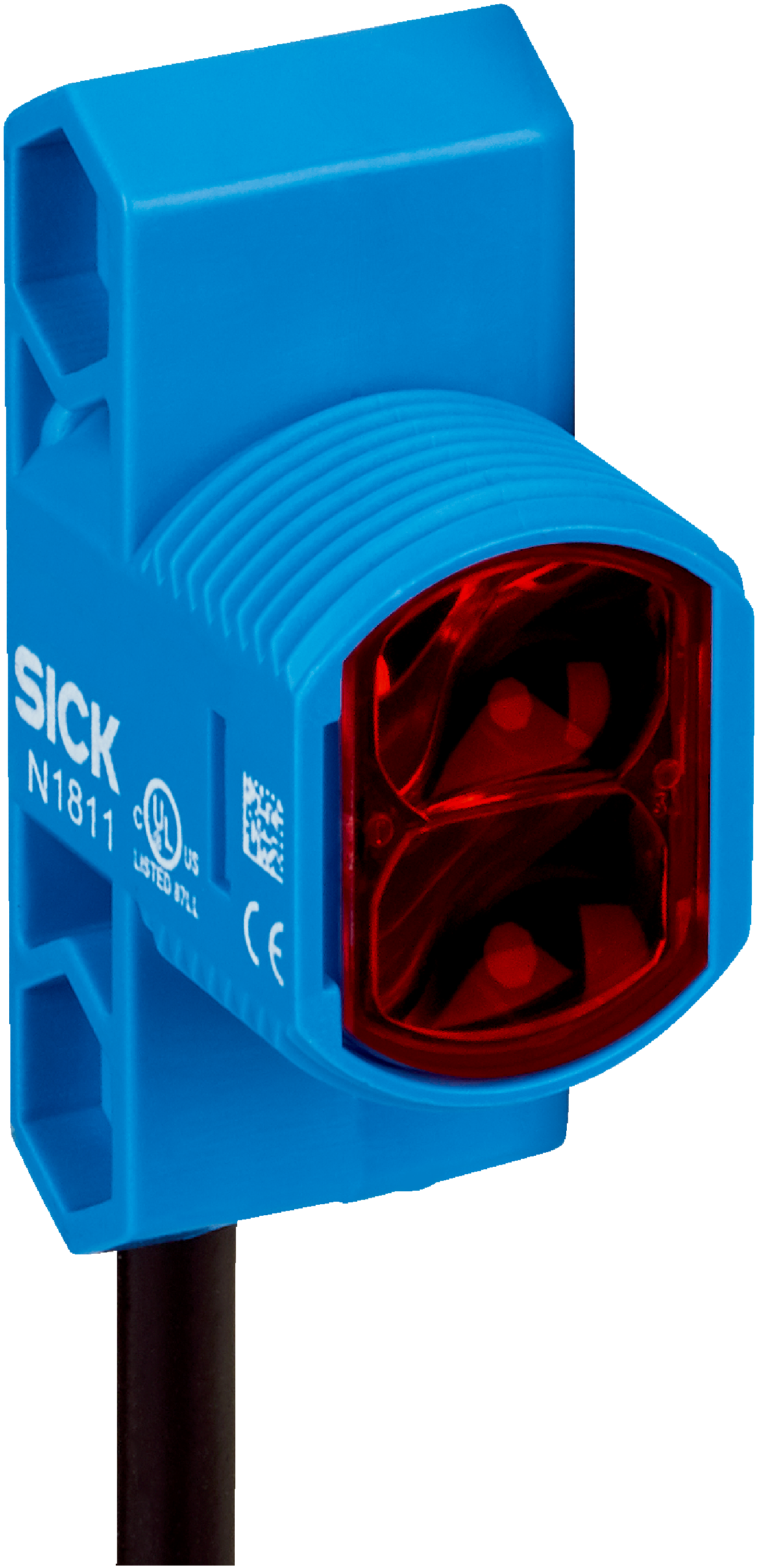

ZLD18-2AB4B8 | Photoelectric sensors
The SICK ZLD18-2AB4B8 is a compact photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a dual lens system and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ZLD18-2AB4B8 | Photoelectric sensors
Brand: SICK
SKU: 1095737
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Proximity sensor, Industrial sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light spot size at 1000 mm: Ø 125 mm
- Wave length: 625 nm
- Dimensions (H x L x W): 34.8mm x 21.9mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Polarizing filter included to reduce false triggering
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-2AB4B8 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
