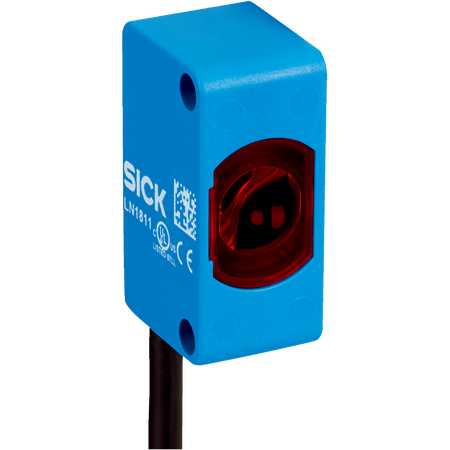

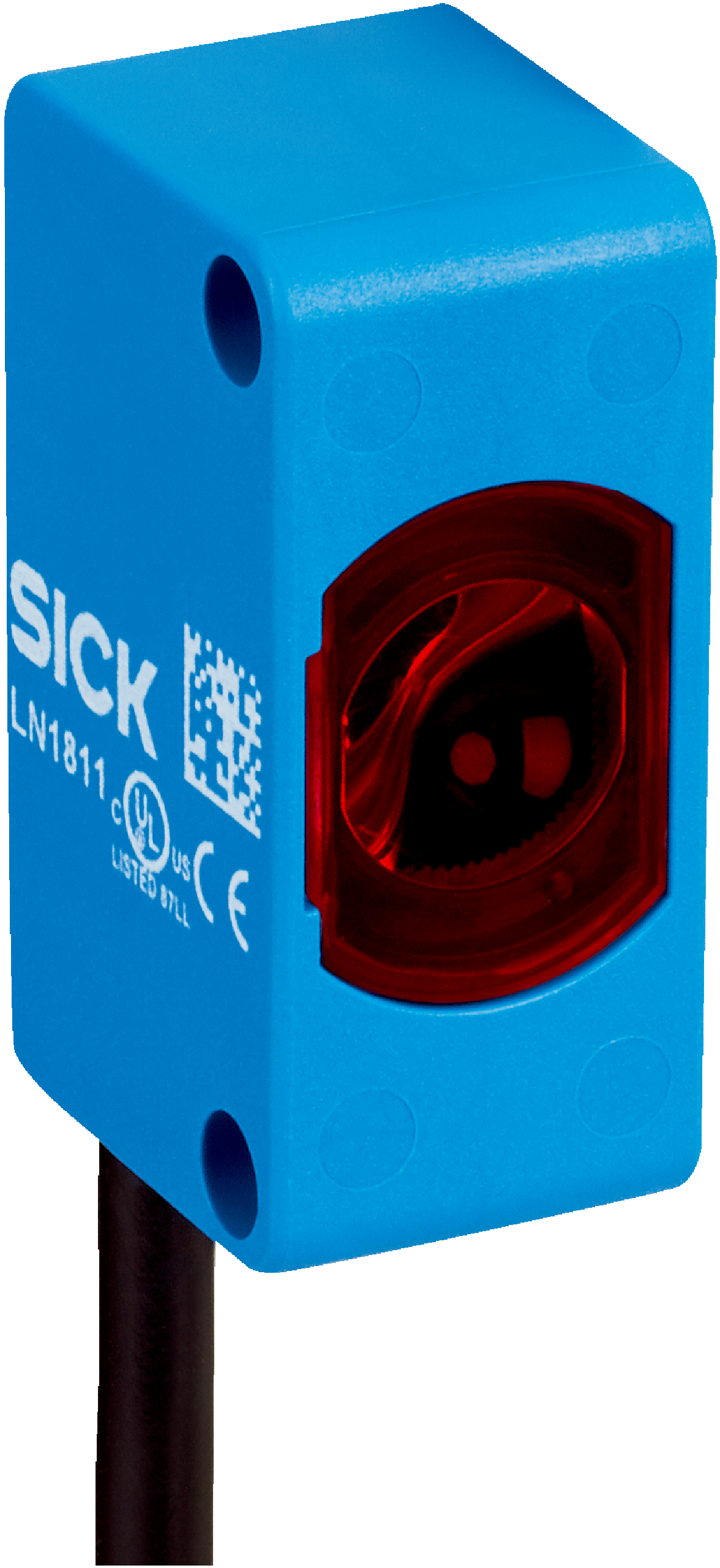

ZLD18-7EZ1G2P38 | Photoelectric sensors
The SICK ZLD18-7EZ1G2P38 is a compact photoelectric retro-reflective sensor featuring a dual lens system, visible red PinPoint LED, and robust IP67 housing, ideal for precise object detection in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ZLD18-7EZ1G2P38 | Photoelectric sensors
Brand: SICK
SKU: 1104283
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial photo sensor, SICK ZLD18 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 25 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, dark switching mode
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable open end, 4-wire, 2,000 mm, plastic PVC
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Polarizing filter included
- Dimensions (H x L x W): 31mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design in blue color
- Dark switching NPN output
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
- Polarizing filter included to reduce false triggering
- Cable open end, 4-wire, 2,000 mm with plastic PVC material
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-7EZ1G2P38 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
