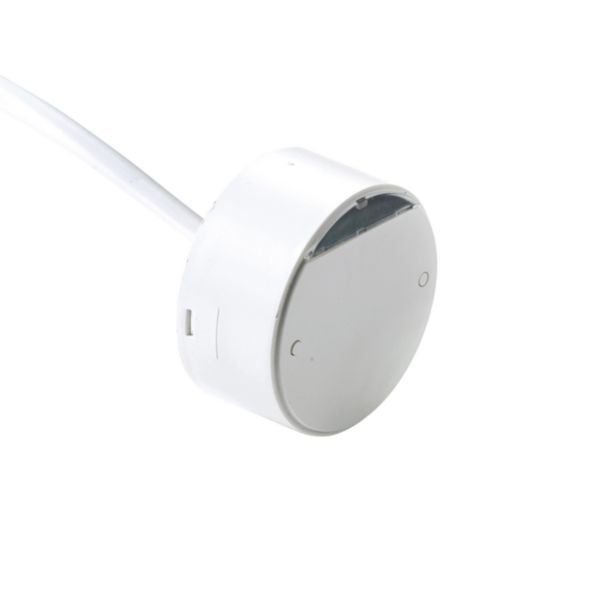

1-10V Analogue Dimming Miniature Microwave Presence Detector | IP40 Rated | 360° Detection | 8m Diameter Reach | @EA of 1 | by CP Electronics
The 1-10V Analogue Dimming Miniature Microwave Presence Detector is designed for seamless luminaire integration, featuring a 360° detection angle and an 8m diameter reach. Ideal for automatic lighting control in commercial and industrial spaces, this sensor offers adjustable luminosity and sensitivity, ensuring energy savings by switching off lights when areas are unoccupied.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-10V Analogue Dimming Miniature Microwave Presence Detector | IP40 Rated | 360° Detection | 8m Diameter Reach | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-AD-L1
Alternatively Known As: Microwave Presence Sensor, Miniature Microwave Detector, 1-10V Dimming Presence Sensor, Luminaire Presence Detector, CP Microwave Detector Head
Technical Specifications
- Detection technology: High frequency microwave sensor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1100 W
- Detection angle: 360° horizontal
- Max reach: 4 m sideways, 4 m frontally, 8 m diameter on floor
- Response value luminosity: 0-2000 lx adjustable
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: 3.6 mA
- Degree of protection: IP40
- Impact strength: IK05
- Operating temperature: -10 to 80 °C
- Material: Thermoplastic, halogen free
- Mounting method: Surface mounted
- Connection cable length: 1 meter
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector designed for luminaire mounting
- 1-10V analogue dimming control for dimmable ballasts
- 360° detection angle with 8m diameter reach on the floor
- Adjustable response sensitivity and luminosity
- Programmable via handset for on/off, lux levels, and preset scenes
- IP40 rated with thermoplastic, halogen-free, matt white housing
- Suitable for switching and dimming with lux level sensing
- Maintained illuminance with daylight linking and step-down illuminance
- Surface mounted installation
- Standby consumption of 3.6 mA
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic lighting control in large, awkwardly shaped spaces
- Luminaire integration for presence detection
- Suitable for incandescent, fluorescent, and compact fluorescent lighting
- Ideal for commercial and industrial lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy savings through automatic lighting control and dimming
- Reduces unnecessary power consumption by switching off lights when areas are unoccupied
- Supports daylight harvesting to optimize natural light use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics 1-10V Analogue Dimming Miniature IP40 Microwave Presence Detector Head with 1m Lead is available for immediate purchase, ideal for integration into luminaires for automated lighting control in commercial and industrial environments.
