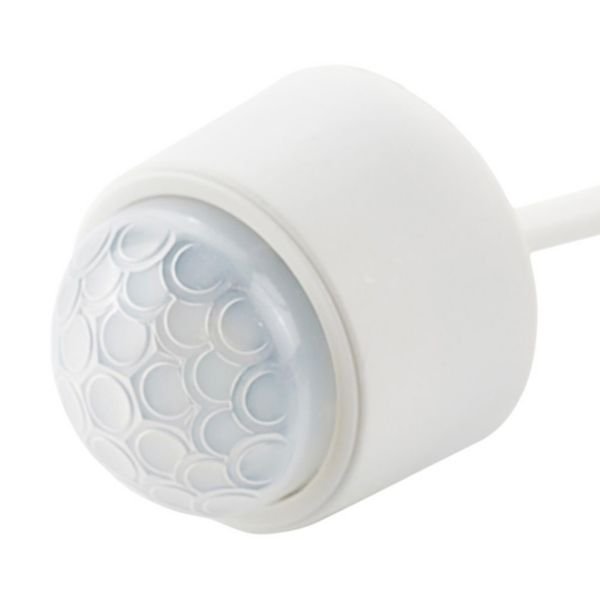

1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Flush/Surface Mounted | @Each of 1 | by CP Electronics

BRAND: CP Electronics
SKU: EBMHS-AD-SL-L03
$137.20 List price: $171.00
+ −
30 Days Return Delivery Options
The 1-10V Analogue Dimming Miniature PIR Presence Detector is designed for efficient lighting control in commercial spaces. With a compact design suitable for flush or surface mounting, it features absence detection and daylight harvesting capabilities. Ideal for corridors and common areas, this sensor can be mounted up to 9 meters high and is programmable via UHS5 or UNLCDHS handsets, ensuring optimal energy savings and convenience.

Product Name/Title: 1-10V Analogue Dimming Miniature PIR Presence Detector | IP40 Rated | Flush/Surface Mounted | @Each of 1 | by CP Electronics

Brand: CP Electronics

SKU: EBMHS-AD-SL-L03

Alternatively Known As: Miniature PIR Presence Detector, 1-10V Dimming PIR Sensor, Flush Mounted PIR Sensor, Surface Mounted PIR Detector

Technical Specifications
  • Detection method: Passive Infrared (PIR)
  • Dimming control: 1-10V analogue dimming ballasts
  • Mounting: Flush or surface mounted
  • Ingress protection: IP40
  • Lead length: 300mm
  • Mounting height: Up to 9 meters
  • Connection: RJ11 plug pre-wired
  • Programmable via handset (UHS5 or UNLCDHS)
  • Features: Absence detection, lux level sensing, scene setting, lamp burn-in
  • Dimensions (H x L x W): 40mm x 50mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Small and unobtrusive design suitable for flush or surface mounting
  • Pre-wired with RJ11 plug for easy connection to power supply
  • Suitable for mounting at heights up to 9 meters
  • Compatible with 1-10V analogue dimming ballasts
  • Programmable via UHS5 or UNLCDHS handsets
  • Features absence detection and daylight harvesting
  • Two channel flexibility with scene setting and recall
  • Supports switching and dimming with lux level sensing
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
  • Lighting control in commercial and office buildings
  • Automatic lighting for corridors, stairwells, and common areas
  • Energy-saving presence detection for indoor lighting
  • Integration with luminaires for efficient lighting management
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces energy consumption by automatically controlling lighting based on occupancy
  • Supports daylight harvesting to minimize artificial lighting use
  • Helps lower carbon footprint through efficient lighting management
Warranty Information

Standard manufacturer warranty applies, typically 2 years against defects.

Available Now

The CP Electronics 1-10V Analogue Dimming Miniature IP40 PIR Presence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
