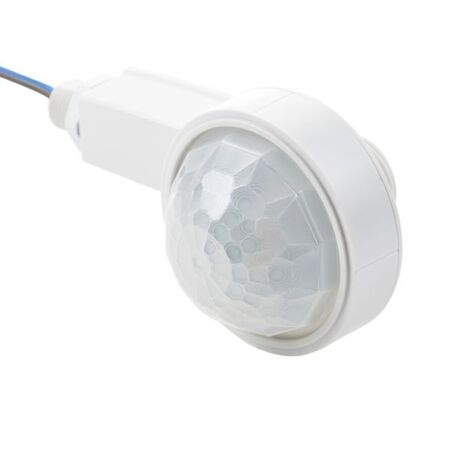

1-10V Analogue Dimming Retrofit IP65 High Bay Luminaire | PIR Presence Detection | Up to 40m Range | by CP Electronics

BRAND: CP Electronics
SKU: EBDHS-MB-AD
$471.40 List price: $587.50
+ −
30 Days Return Delivery Options
The 1-10V Analogue Dimming Retrofit IP65 High Bay Luminaire is designed for efficient lighting control in warehouses and industrial spaces. Featuring groundbreaking PIR presence detection with a range of up to 40m and IP65 rating for damp areas, this luminaire ensures energy savings through smart dimming and daylight harvesting. Ideal for high bay lighting applications, it supports various lighting types and is programmable for customized settings.

Product Name/Title: 1-10V Analogue Dimming Retrofit IP65 High Bay Luminaire | PIR Presence Detection | Up to 40m Range | by CP Electronics

Brand: CP Electronics

SKU: EBDHS-MB-AD

Alternatively Known As: High Bay PIR Presence Detector, Luminaire Mounted PIR Sensor, 1-10V Dimming PIR Detector, IP65 High Bay Motion Sensor

Technical Specifications
  • Detection technology: Passive infrared (PIR)
  • Detection range: Up to 40m diameter on floor
  • Mounting height: Optimum 15m
  • IP rating: IP65 for protection against dust and water
  • Switching power: Max 460W
  • Voltage: 230V AC, 50Hz
  • Response value luminosity: 0-2000 lux adjustable
  • Switch-on delay: 1 second
  • Switch-off delay: 10 seconds
  • Standby consumption: 1.26 mA
  • Material: Thermoplastic, halogen free, matt white finish
  • Impact rating: IK05
  • Cable length: 1000mm supplied
  • Programmable via handset for on/off, lux levels, and scenes
  • Dimensions (H x L x W): 74mm x 172mm x 88mm
  • Weight: 0.3 kg
Key Features
  • Groundbreaking detection range up to 40m at 15m mounting height
  • Unique lens technology for high sensitivity within detection range
  • IP65 rated for damp and wash-down areas
  • Adjustable masking shields for precise detection shape
  • Quick install via M20 gland
  • Supports switching and dimming with lux level sensing
  • Programmable via UHS5 or UNLCDHS handsets
  • Suitable for all lighting types including incandescent, fluorescent, CFL, and LED
  • Two channel flexibility with scene setting and recall
  • Maintained illuminance with daylight linking/harvesting
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
  • Warehouses and factories with high bay lighting
  • Commercial luminaires and basic battens retrofit
  • High level lighting control in demanding spaces
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy saving through presence detection and dimming control
  • Supports daylight harvesting to reduce unnecessary lighting
  • Reduces power consumption by switching off lights when areas are unoccupied
Warranty Information

Standard manufacturer warranty applies; typically 2 years against manufacturing defects.

Available Now

The CP Electronics 1-10V Analogue Dimming Retrofit IP65 High Bay Luminaire Mounted PIR Presence Detector is available for immediate purchase, ideal for warehouse and industrial high bay lighting control applications.
