1000A AC Power Clamp Meter | True RMS Measurement | USB Data Logging | Multi-Function by Majortech
The 1000A AC Power Clamp Meter offers true RMS measurement and USB data logging, making it ideal for industrial electrical power analysis. Built for electrical professionals, it accurately measures active, reactive, and apparent power, ensuring optimal energy usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

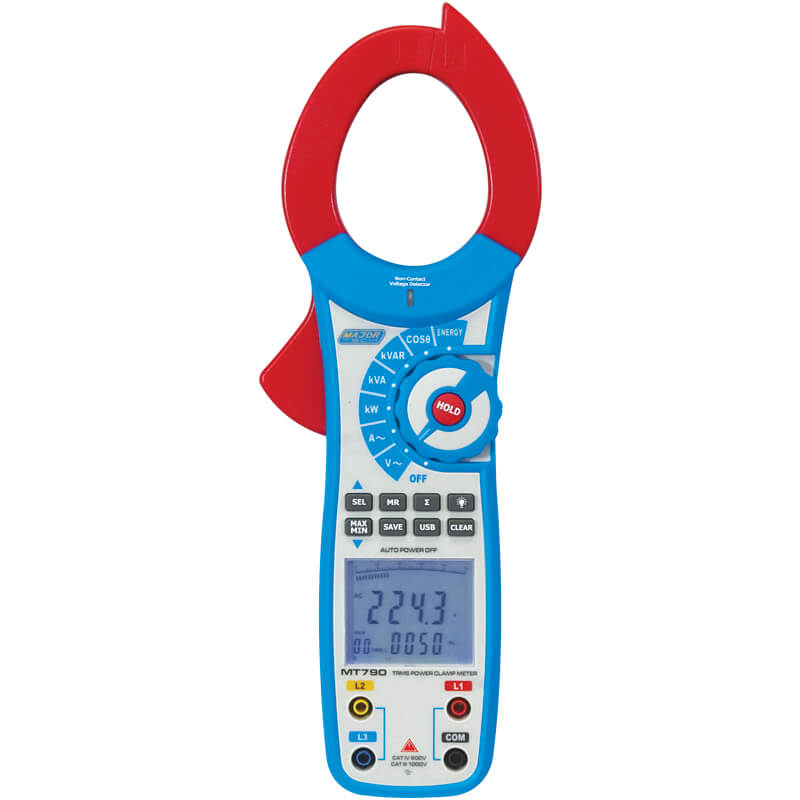

Product Name/Title: 1000A AC Power Clamp Meter | True RMS Measurement | USB Data Logging | Multi-Function by Majortech
Brand: Majortech
SKU: MT790
Alternatively Known As: 1000 Amp Clamp Meter, True RMS Power Clamp Meter, AC Current Clamp Meter, Power Quality Meter, Electrical Clamp Meter
Technical Specifications
- AC Voltage Range: 0.1V to 750V, Resolution: 0.1V, Accuracy: ±(1.2% + 5 digits)
- Frequency Range: 1Hz to 200Hz, Resolution: 1.0Hz, Accuracy: ±(0.5% + 5 digits)
- Temperature Range: -50°C to 1300°C, Resolution: 1°C, Accuracy: ±(5.0°C + 3 digits)
- Active Power Range: 0.01kW to 750.0kW, Resolution: 0.01kW (<1000kW), Accuracy: ±(3.0% + 5 digits)
- Apparent Power Range: 0.01kVA to 750.0kVA, Resolution: 0.01kVA (<1000kVA), Accuracy: ±(3.0% + 5 digits)
- Reactive Power Range: 0.01kVAR to 750.0kVAR, Resolution: 0.01kVAR (<1000kVAR), Accuracy: ±(4.0% + 5 digits)
- Power Factor Range: 0.3 to 1 (capacitive or inductive), Resolution: 0.001, Accuracy: ±(2% + 20)
- Phase Angle Range: 0° to 90°, Resolution: 1°, Accuracy: ±2.0°
- Active Energy Range: 1 to 9999 kWh, Resolution: 0.001 kWh, Accuracy: ±(3.0% + 2 digits)
- Dimensions (H x L x W): 200mm x 40mm x 80mm
- Weight: 1.2 kg
Key Features
- True RMS measurement for accurate AC current and voltage readings
- Measures AC current up to 1000A
- Functions as clamp meter, power meter, multimeter, and AC voltage detector
- Measures True Power, Apparent Power, Reactive Power, Active Power, Power Factor, and Phase Angle
- Supports single-phase and balanced three-phase power measurements
- Manual data logging with storage for up to 99 records
- USB interface for PC connection and data logging with included software
Professional Installation Requirements
- Recommended to be operated and installed by qualified electrical professionals to ensure safety and accuracy.
Applications
- Industrial: Mining operations for electrical power measurement
- Electrical maintenance and troubleshooting
- Power quality analysis in single and three-phase systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps optimize energy usage by accurately measuring power consumption and power factor
- Supports energy efficiency improvements in industrial electrical systems
Warranty Information
1 year warranty covering manufacturing defects and workmanship.
Available Now
The Majortech MT790 1000A AC Power Clamp Meter is available now for immediate purchase. Ideal for industrial and mining electrical power measurement and analysis.
