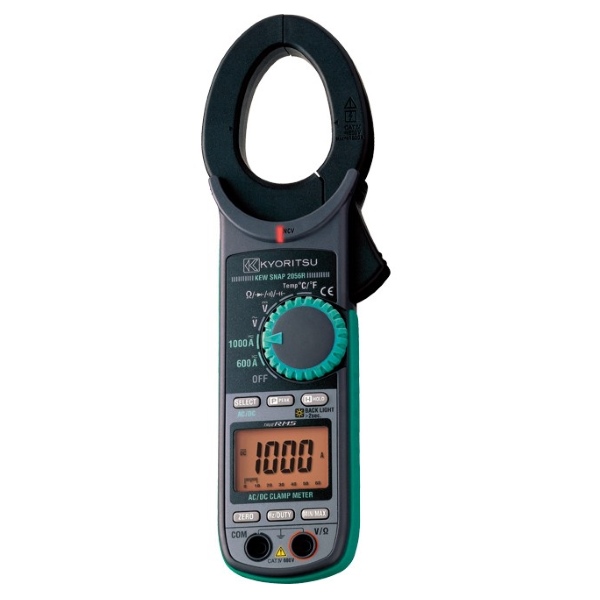

1000A TRMS Digital AC/DC Clamp Meter | True RMS Accuracy | CAT IV 600V Safety | Large 40mm Jaw | by Rapid Tech
The 1000A TRMS Digital AC/DC Clamp Meter is designed for precise electrical testing, featuring true RMS accuracy and a CAT IV 600V safety rating. With large 40mm jaws, it easily clamps around conductors, making it ideal for electricians and maintenance professionals. This versatile meter measures up to 1000A AC/DC current and 600V AC/DC voltage, ensuring reliable performance in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1000A TRMS Digital AC/DC Clamp Meter | True RMS Accuracy | CAT IV 600V Safety | Large 40mm Jaw | by Rapid Tech
Brand: Rapid Tech
SKU: 2056R
Alternatively Known As: Digital Clamp Meter, AC/DC Clamp Meter, True RMS Clamp Meter, 1000A Clamp Meter, Electrical Clamp Meter
Technical Specifications
- Measurement Range: Up to 1000A AC/DC current
- Voltage Range: Up to 600V AC/DC
- Resistance Measurement: Up to 60MΩ
- Jaw Size: 40mm
- Safety Standard: IEC 61010-1 CAT IV 600V
- Functions: Data hold, Peak hold, Max/Min, Non-contact voltage detection
- Display: Bar graph with backlight
- Dimensions (H x L x W): 200mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V safety rating
- Large 40mm jaws for easy clamping
- True RMS measurements for accuracy on non-sinusoidal and distorted waveforms
- Measures up to 1000A AC/DC current
- Measures voltage up to 600V AC/DC
- Resistance measurement up to 60MΩ
- Data hold and peak hold functions
- Max/min function to display maximum and minimum values
- Non-contact voltage detection with red LED indicator
- Bar graph display with backlight for low light conditions
- Ergonomic double moulded construction
Professional Installation Requirements
- Professional installation is not required but usage by trained personnel or electricians is recommended for safety and accuracy.
Applications
- Power distribution companies
- Power utilities
- Maintenance sections
- Electrical testing and troubleshooting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps in efficient electrical diagnostics reducing energy waste
- Durable design reduces need for frequent replacements
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Rapid Tech 1000A TRMS Digital AC/DC Clamp Meter is available now for immediate purchase. Ideal for electrical testing in industrial, commercial, and utility applications.
