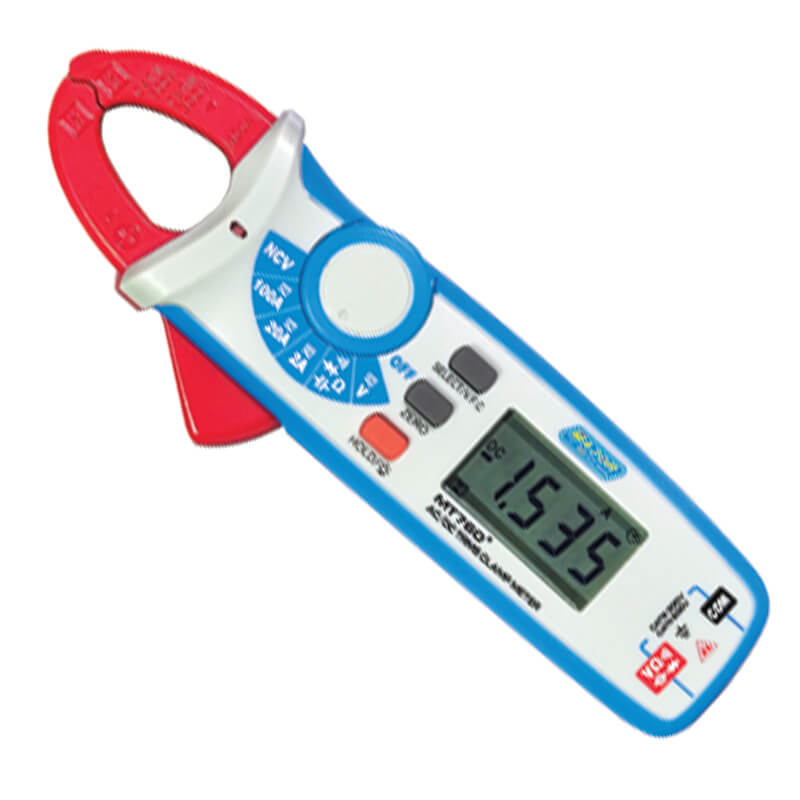

100A AC/DC Clamp Meter | True RMS Measurement | Non-Contact Voltage Detection | Backlit LCD by Majortech

BRAND: Major Tech

SKU: MT760

$206.00 List price: $265.10

+ −

30 Days Return Delivery Options

The 100A AC/DC clamp meter features true RMS measurement and non-contact voltage detection—ideal for electrical installation and maintenance. Built for professionals, it offers a backlit LCD for easy reading and a compact design for durability.

Description

Product Name/Title: 100A AC/DC Clamp Meter | True RMS Measurement | Non-Contact Voltage Detection | Backlit LCD by Majortech

Brand: Majortech

SKU: MT760

Alternatively Known As: Digital Clamp Meter, AC/DC Current Meter, True RMS Clamp Meter, Electrical Clamp Meter, MT760 Clamp Meter

Technical Specifications

AC Current Range: 1mA to 100A, Resolution: 1mA, Accuracy: ±(2.5% + 5 digits)
DC Voltage Range: 0.1mV to 600V, Resolution: 0.1mV, Accuracy: ±(0.7% + 3 digits)
AC Voltage Range: 1mV to 600V, Resolution: 1mV, Accuracy: ±(1.0% + 3 digits)
AC Voltage VFD Range: 200.0V to 600V, Resolution: 100mV, Accuracy: ±(4.0% + 3 digits)
Resistance Range: 0.1Ω to 20.00MΩ, Resolution: 0.1Ω, Accuracy: ±(1.0% + 2 digits)
Capacitance Range: 1pF to 20mF, Resolution: 1pF, Accuracy: ±(4.0% + 5 digits)
Continuity buzzer and diode test included
Non-contact voltage detection feature
Dimensions (H x L x W): 180mm x 35mm x 70mm
Weight: 0.3 kg

Key Features

CAT III 300V safety rating
True RMS measurement for accurate AC/DC readings
100A AC/DC current measurement with 1mA resolution
Backlit LCD display for easy reading in low light
Measures AC/DC voltage up to 600V
Capacitance, resistance, continuity buzzer, and diode test functions
VFC function for stable voltage measurement in Variable Frequency Drives
Zero/Relative mode for offset adjustment
Non-contact voltage detection
Compact and durable double moulded rubber housing

Professional Installation Requirements

Professional installation is not required; however, use by qualified personnel is recommended for safety and accuracy.

Applications

Electrical installation and maintenance
Industrial equipment testing
HVAC system diagnostics
Automotive electrical troubleshooting
General electrical and electronic measurements

Standards & Compliance

Complies with AS/NZS 61010 for electrical test and measurement equipment safety

Environmental Benefits

Enables accurate electrical diagnostics to improve energy efficiency
Helps in maintaining electrical systems to reduce energy waste

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Majortech MT760 100A AC/DC Clamp Meter is available now for immediate purchase. Ideal for electrical installation, maintenance, and industrial diagnostic applications.
