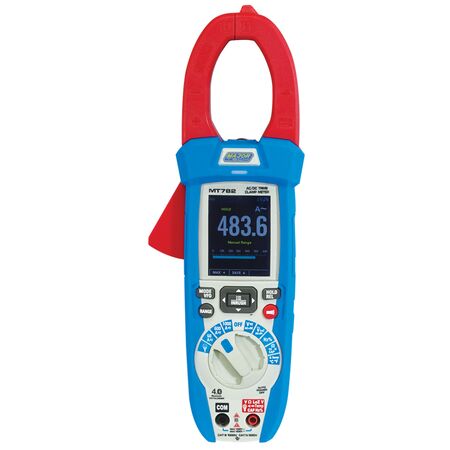

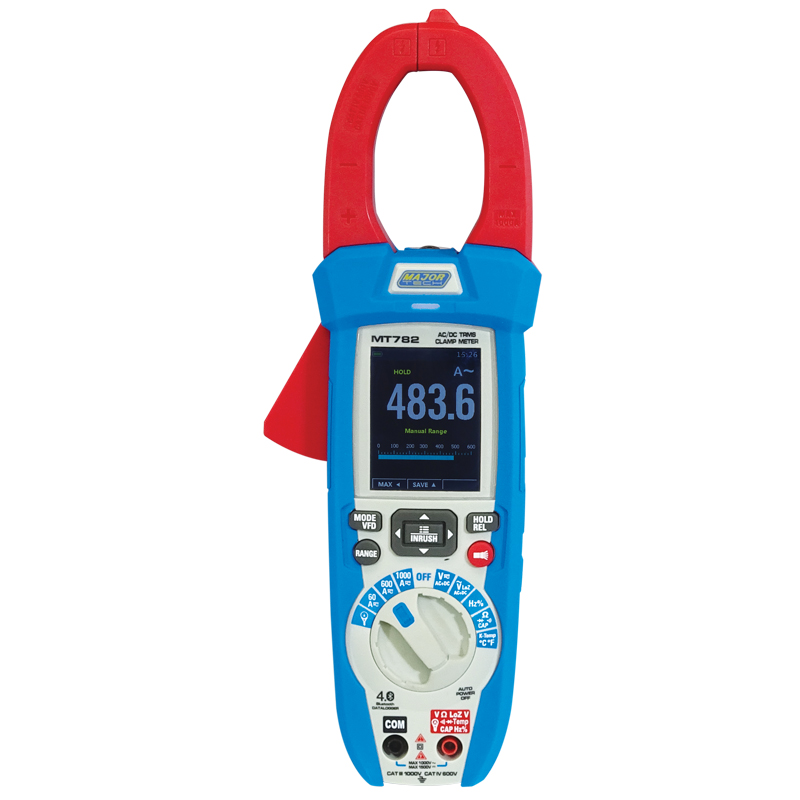

1500V DC Solar Clamp Meter | True RMS 1000A | Bluetooth & Large Display | Majortech
The 1500V DC Solar Clamp Meter is designed for solar applications, measuring DC voltage up to 1500V and AC/DC current up to 1000A. Ideal for electrical maintenance and troubleshooting, it features Bluetooth connectivity for data logging and a large 6000 count TFT LCD display for easy reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1500V DC Solar Clamp Meter | True RMS 1000A | Bluetooth & Large Display | Majortech
Brand: Majortech
SKU: MT782
Alternatively Known As: Solar Clamp Meter, Digital Clamp Meter, True RMS Clamp Meter, Bluetooth Clamp Meter, AC/DC Clamp Meter
Technical Specifications
- AC Voltage Range: 0.001V to 1000V, Accuracy: ±(1.2% + 5 digits)
- AC+DC TRMS Voltage Range: 0.001V to 1000V, Accuracy: ±(2.5% + 20 digits)
- DC Current Range: 0.01A to 1000A, Accuracy: ±(2.0% + 8 digits)
- AC Current Range: 0.01A to 1000A, Accuracy: ±(2.5% + 5 digits)
- Flexi Coil AC Current Range: 0.01A to 3000A, Accuracy: ±(3% + 5 digits)
- Duty Cycle Range: 10% to 90%, Accuracy: ±(1.2% + 8 digits)
- Resistance Range: 0.1Ω to 60MΩ, Accuracy: ±(0.8% + 5 digits)
- Frequency Range: 0.01Hz to 10MHz, Accuracy: ±(0.2% + 5 digits)
- Capacitance Range: 0.01nF to 100mF, Accuracy: ±(3.0% + 8 digits)
- Temperature K Type Range: -40°C to 1000°C, Accuracy: ±(1.5% + 3°C)
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V True RMS 1000A AC/DC digital clamp meter
- Large 6000 count colour TFT LCD display with analogue bargraph
- Measures up to 1500V DC specifically for solar applications
- LowZ ACV range with low pass filter to eliminate ghost voltages
- 100ms Inrush current detection for motor and surge current analysis
- Bluetooth wireless data transmission to Android/iOS mobile app
- Non-contact voltage detection, Peak Hold, Min/Max, Average, Data hold
- Built-in flashlight for use in dimly lit areas
- Double moulded rubber casing for rugged heavy duty use
Professional Installation Requirements
- No professional installation required; however, users should have electrical measurement knowledge and follow safety guidelines when operating the clamp meter.
Applications
- Solar industry: Measuring DC voltage up to 1500V
- Electrical maintenance and troubleshooting
- AC/DC current measurement in industrial and residential settings
- Temperature, frequency, capacitance, and resistance measurements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate measurement and monitoring of solar power systems, promoting efficient energy use
- Bluetooth data logging reduces paper usage by allowing digital record keeping
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech 1500V DC Solar Clamp Meter MT782 is available now for immediate purchase. Ideal for solar industry professionals and electrical technicians requiring precise and versatile measurement tools.
