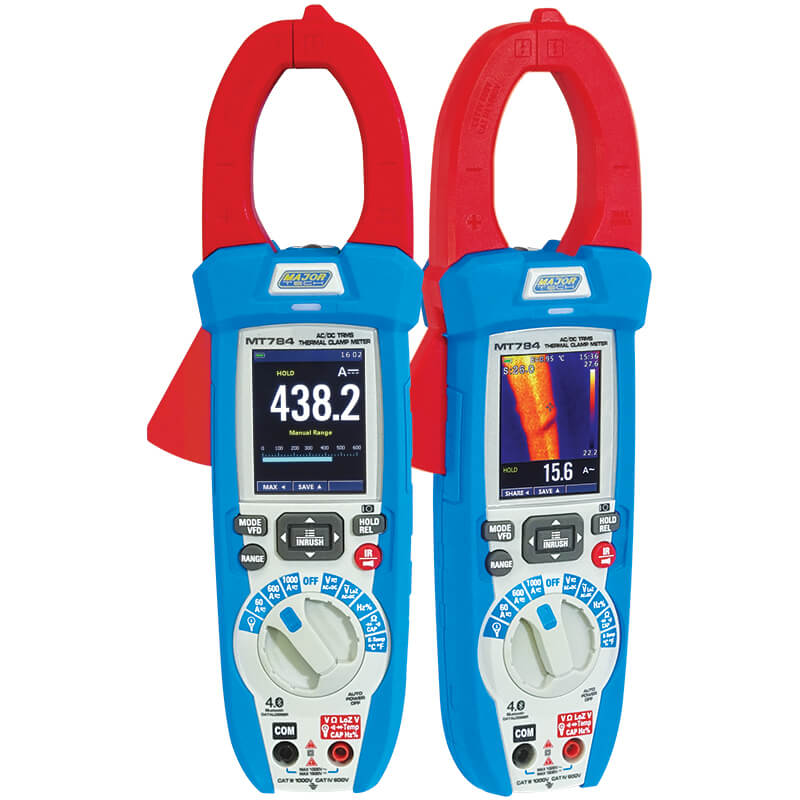

1500V DC Thermal Imaging Clamp Meter | 80 x 80 Thermal Resolution | Bluetooth Connectivity | Large TFT LCD by Majortech
The 1500V DC Thermal Imaging Clamp Meter is designed for solar industry professionals, featuring an 80 x 80 pixel thermal imager and Bluetooth connectivity for easy data transfer. Ideal for AC/DC current and voltage testing, it offers a large 6000 count TFT LCD display for clear readings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1500V DC Thermal Imaging Clamp Meter | 80 x 80 Thermal Resolution | Bluetooth Connectivity | Large TFT LCD by Majortech
Brand: Majortech
SKU: MT784
Alternatively Known As: Thermal Clamp Meter, Thermal Imaging Multimeter, Solar Clamp Meter, MT784 Clamp Meter
Technical Specifications
- DC Voltage Range: 0.1mV to 1500V, Accuracy: ±(0.5% + 5 digits)
- AC Voltage Range: 0.001V to 1000V, Accuracy: ±(1.2% + 5 digits)
- DC Current Range: 0.01A to 1000A, Accuracy: ±(2.0% + 8 digits)
- AC Current Range: 0.01A to 1000A, Accuracy: ±(2.5% + 5 digits)
- AC+DC TRMS Voltage Range: 0.001V to 1000V, Accuracy: ±(2.5% + 20 digits)
- Duty Cycle Range: 10% to 90%, Accuracy: ±(1.2% + 8 digits)
- Resistance Range: 0.1Ω to 60MΩ, Accuracy: ±(0.8% + 5 digits)
- Frequency Range: 0.01Hz to 10kHz, Accuracy: ±(0.2% + 5 digits)
- Capacitance Range: 0.01nF to 100mF, Accuracy: ±(3.0% + 8 digits)
- Temperature K-type Range: -40°C to 1000°C, Accuracy: ±(1.5% or ±3°C)
- IR Temperature Range: -20°C to 260°C, Accuracy: ±(3°C or ±3%)
- Thermal Imager Resolution: 80 x 80 pixels
- Display: 6000 count colour TFT LCD
- Dimensions (H x L x W): 200mm x 50mm x 90mm
- Weight: 0.8 kg
Key Features
- Measures up to 1500V DC and 1000A AC/DC
- 80 x 80 pixel thermal imager with temperature range -20°C to 260°C
- Large 6000 count colour TFT LCD display
- Bluetooth connectivity for wireless data transmission to Android/iOS apps
- Low Z range function with low pass filter to eliminate ghost voltages
- 100ms inrush current detection
- Built-in record, store, and trend capture functions
- Non-contact voltage detection and built-in flashlight
- Auto power off when not in use
Professional Installation Requirements
- Professional installation is not required; however, use by qualified personnel is recommended for accurate measurements and safety.
Applications
- Solar industry electrical measurements
- AC/DC current and voltage testing
- Thermal imaging for electrical diagnostics
- Motor inrush current detection
- Non-contact voltage detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient maintenance and fault detection in solar power systems, promoting renewable energy use
- Reduces energy waste by identifying electrical faults early
- Wireless data transfer reduces paper usage for record keeping
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech MT784 1500V DC Thermal Imaging Clamp Meter is available now for immediate purchase. Ideal for solar industry professionals and electrical maintenance applications.
