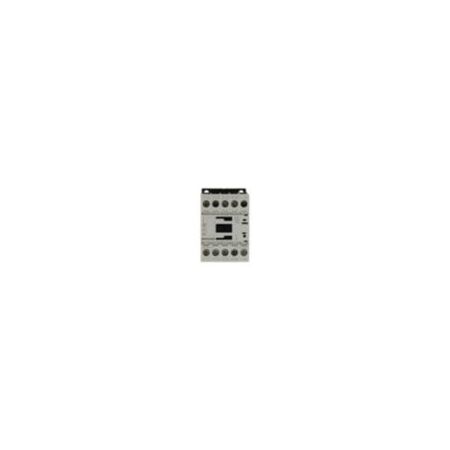

3-Pole AC Motor Contactor | 110V 50Hz & 120V 60Hz | 22A Rated Current | 10 Million Operations by Eaton

BRAND: Eaton
SKU: Y7-276827
$77.70 List price: $96.80
+ −
30 Days Return Delivery Options
This 3-pole AC motor contactor operates at 110V 50Hz and 120V 60Hz, with a rated current of 22A—ideal for industrial motor control and automation. Built for efficiency, it features a mechanical lifespan of 10 million operations and protection against direct contact.

Product Name/Title: 3-Pole AC Motor Contactor | 110V 50Hz & 120V 60Hz | 22A Rated Current | 10 Million Operations by Eaton

Brand: Eaton

SKU: Y7-276827

Alternatively Known As: Eaton DILM12-10 Contactor, Moeller DILM Contactor, 3-Pole Motor Contactor, AC Motor Contactor 110V 50Hz, 120V 60Hz

Technical Specifications
  • 3-pole contactor for AC operation at 110 V 50 Hz and 120 V 60 Hz
  • Rated operational power: 5.5 kW at 380/400 V AC
  • Rated operational current (Ie) at AC-1: 22 A
  • Rated operational current (Ie) at AC-3: 12 A
  • Rated operational current (Ie) at AC-4: 7 A
  • Rated insulation voltage (Ui): 690 V
  • Rated impulse withstand voltage (Uimp): 8000 V AC
  • Mechanical lifespan: 10,000,000 operations
  • Operating frequency: 9000 mechanical operations per hour
  • Protection: Finger and back-of-hand proof according to EN 50274
  • Terminal capacity: 2 x (0.75 - 2.5) mm² flexible with ferrule
  • Screw size: M3.5 terminal screws
  • Tightening torque: 1.2 Nm
  • Ambient operating temperature: -25 °C to 60 °C
  • Shock resistance: Tested per IEC/EN 60068-2-27
  • Power consumption pick-up: 24 VA at 50 Hz, 30 VA at 60 Hz
  • Dimensions (H x L x W): 68mm x 75mm x 45mm
  • Weight: 0.24 kg
Key Features
  • 3-pole contactor suitable for 380-400 V AC operation
  • Rated operational power up to 7 kW at 415 V AC
  • Screw terminal connections with M3.5 screws
  • Mechanical lifespan of 10,000,000 operations
  • Protection against direct contact when actuated from front
  • Rated impulse withstand voltage of 8000 V AC
  • Suitable for motors with efficiency class IE3
  • Dual-frequency coil for 110 V 50 Hz and 120 V 60 Hz operation
  • Rated operational current up to 22 A at AC-1 category
  • Short-circuit current rating up to 5 kA
  • Shock resistance tested according to IEC/EN 60068-2-27
  • Ambient operating temperature range from -25 °C to 60 °C
Professional Installation Requirements
  • Installation by a qualified electrician or professional is required to ensure compliance with electrical safety standards and proper connection.
Applications
  • Motor control and switching
  • Industrial automation systems
  • AC induction motor starting, plugging, reversing, inching
  • Non-inductive or slightly inductive loads
  • Resistance furnaces
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed for efficient motor control reducing energy waste
  • Long mechanical lifespan reduces replacement frequency and waste
Warranty Information

Warranty terms as provided by Eaton, typically covering manufacturing defects. Refer to Eaton's official warranty policy for details.

Available Now

The Eaton Moeller DILM12-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.

Product specifications (skuPage.276827.pdf, 120 Kb) [Download]
