3 Pole Disconnect Switch | 16A | 690V Max | IP20 Protection by NHP
3 pole disconnect switch with 16A rating and 690V max operation—ideal for industrial and commercial installations. Built for reliable disconnection, with IP20 protection and durable construction.
Sign in
Please login to continue to your account.

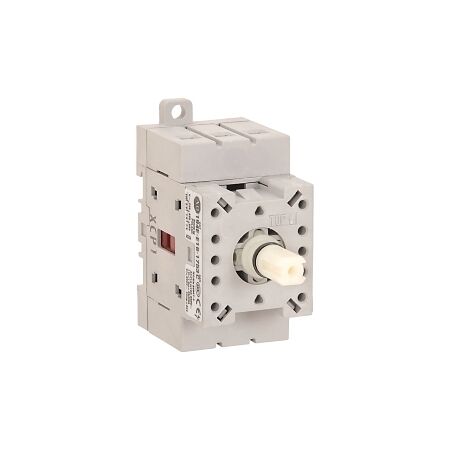

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 16A
Brand: NHP
SKU: 194EE161753
Alternatively Known As: 194E Disconnect Switch, 3 Pole Switch Disconnector, Allen-Bradley Switch
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 16 A
- Rated Operation Power at AC 3, 400 V: 5.5 kW
- Rated Operation Power at AC 23, 400 V: 7.5 kW
- Rated Short Time Withstand Current: 800 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Type of Electrical Connection: Screw connection
- Conditioned Rated Short Circuit Current: 20 kA
- Degree of Protection: IP20
- Padlock Locking: Yes
- Rated Surrounding Temperature: 60 °C
- Storage Temperature: -40-80 °C
- Dimensions (H x L x W): 64mm x 90mm x 45mm
- Weight: 1.5 kg
- 3 Pole design for reliable disconnection
- Rated for 16A with a maximum operation voltage of 690V
- IP20 protection for front side
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Suitable for use in manufacturing and processing facilities
- Commercial: Ideal for commercial electrical installations
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Durable construction reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase, ideal for industrial and commercial electrical installations.
