3 Pole Load Break Switch | 100A Rated | Front Mount | IP20 by NHP
3 pole load break switch with 100A rating and front mounting—ideal for industrial and commercial load management. Built for durability, with IP20 protection and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

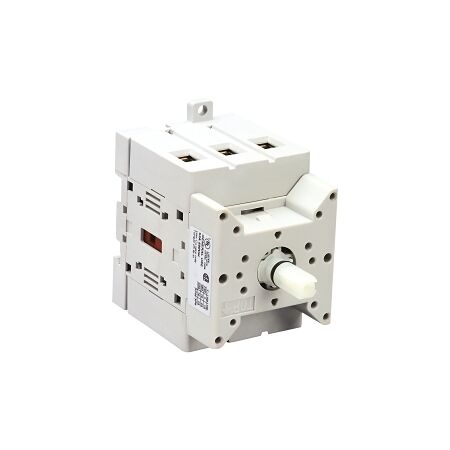

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 100A
Brand: NHP
SKU: LE71001753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 37 kW
- Rated operation current (IE) at AC 21A 690 V: 100 A
- Rated operation current (IE) at AC 1 690 V: 100 A
- Thermal current (enclosed): 100 A
- Thermal current (open): 120 A
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size (rigid cable): 4-35 mm²
- Wire conductor size (flex cable): 4-50 mm²
- Degree of protection (IP): IP20
- With zero off position: Yes
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 90mm x 90mm x 72mm
- Weight: 1.5 kg
Key Features
- 3-pole design for efficient load management.
- Rated for 100A operation, suitable for heavy-duty applications.
- Front mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load management in manufacturing facilities
- Commercial: Power distribution in commercial buildings
- General: Any application requiring reliable on/off switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 100A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable load management.
