3 Pole Load Break Switch | 25A Rated | Front Mount | IP20 by NHP
3 pole load break switch with 25A rating and front mounting—ideal for industrial and commercial applications. Built for reliable switching, with IP20 protection and robust mechanical life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

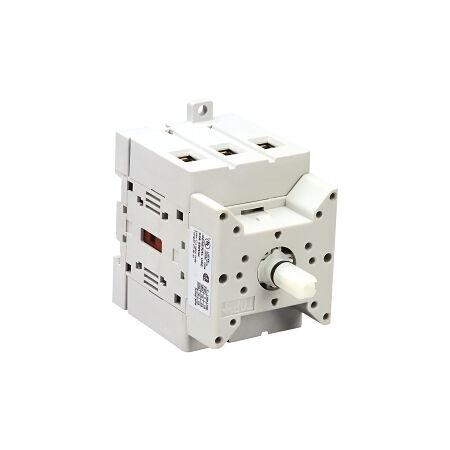

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 25A
Brand: NHP
SKU: LE7251753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off On Switch
Technical Specifications
- Rated operation power at AC 3, 400 V: 7.5 kW
- Rated operation current IE at AC 21A 690 V: 25 A
- Rated operation current IE at AC 1 690 V: 25 A
- Thermal current enclosed: 32 A
- Thermal current open: 40 A
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size rigid cable: 1.5-10 mm²
- Wire conductor size flex cable: 1.5-16 mm²
- Degree of protection IP front side: IP20
- With zero off position: Yes
- Number of switch positions: 2
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 60mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole design for effective load breaking.
- Rated for 25A operation with a robust mechanical life of 200,000 cycles.
- Front mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Ideal for commercial electrical installations requiring reliable switching.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 25A is available now for immediate purchase, ideal for industrial and commercial applications.
