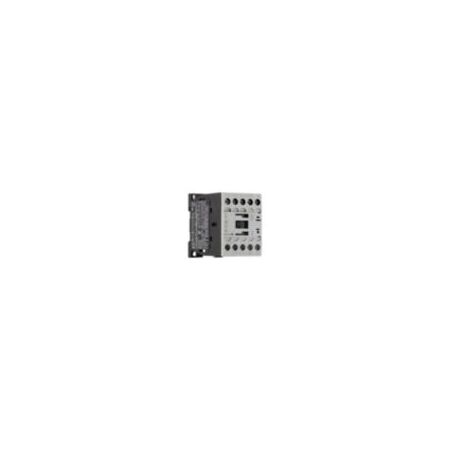

3-Pole Motor Contactor | 24V AC | 7 kW Power Rating | 10 Million Operations by Eaton
This 3-pole motor contactor operates at 24V AC and supports up to 7 kW power, making it ideal for industrial automation and motor control applications. Built for efficiency and longevity, it features a mechanical lifespan of 10 million operations and protection against direct contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Motor Contactor | 24V AC | 7 kW Power Rating | 10 Million Operations by Eaton
Brand: Eaton
SKU: Y7-276852
Alternatively Known As: Eaton DILM12-01 Contactor, 3 Pole Motor Contactor, 24V AC Contactor, Eaton Moeller DILM Contactor
Technical Specifications
- 3-pole contactor with 1 normally closed auxiliary contact
- Rated operational voltage up to 690 V AC
- Rated operational current: 22 A (AC-1), 12 A (AC-3 at 380-415 V)
- Rated operational power: 5.5 kW at 380/400 V AC, 7 kW at 415 V AC
- Rated breaking capacity: 120 A at 220/230 V and 380/400 V
- Operating temperature range: -25 °C to 60 °C
- Mechanical lifespan: 10,000,000 operations
- Screw terminals with M3.5 screws, tightening torque 1.2 Nm
- Power consumption: 24 VA at 50 Hz, 30 VA at 60 Hz
- Protection: Finger and back-of-hand proof according to EN 50274
- Shock resistance compliant with IEC/EN 60068-2-27
- Rated insulation voltage: 690 V
- Duty factor: 100%
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for AC operation at 24 V 50 Hz
- Rated operational power up to 7 kW at 415 V AC
- Screw terminal connections with M3.5 screws
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact from front (finger and back-of-hand proof)
- Rated impulse withstand voltage of 8000 V AC
- Suitable for motors with efficiency class IE3
- Dual-frequency coil with power consumption of 24 VA at 50 Hz
- Rated operational current up to 22 A at AC-1 category
- Complies with IEC 60947-4-1 and UL 508 standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Motor control and switching
- Industrial automation systems
- Electrical contactor applications for motors with efficiency class IE3
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILM12-01 contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
