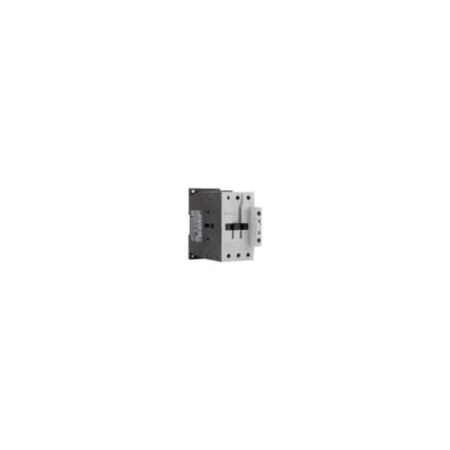

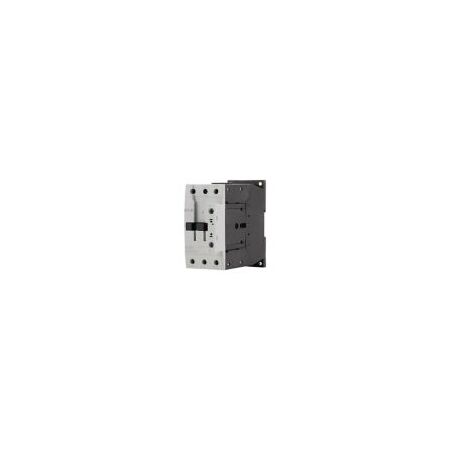

3 Pole Motor Contactor 72A | 240V AC | High Mechanical Lifespan | 650A Breaking Capacity by Eaton
This 3 pole motor contactor operates at 240V AC with a rated operational current of 72A and a breaking capacity of 650A—ideal for industrial automation and motor control applications. Built for reliability, it features a high mechanical lifespan of 10 million operations and secure screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Pole Motor Contactor 72A | 240V AC | High Mechanical Lifespan | 650A Breaking Capacity by Eaton
Brand: Eaton
SKU: Y7-109183
Alternatively Known As: Eaton DILM72 Contactor, 3 Pole Motor Contactor, 240V AC Contactor, Industrial Motor Contactor
Technical Specifications
- Rated operational current (Ie) at AC-3, 380/400 V: 72 A
- Rated operational power at AC-3, 380/400 V: 37 kW
- Rated control supply voltage (Us) at AC, 50 Hz: 240 V
- Rated breaking capacity at 220/230 V to 500 V: 650 A
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 5000 mechanical operations per hour
- Protection: Finger and back-of-hand proof according to EN 50274
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Shock resistance: 7 g mechanical according to IEC/EN 60068-2-27
- Ambient operating temperature: -25 °C to 60 °C
- Terminal capacity: Supports copper cables from 0.75 mm² to 50 mm²
- Screw size: M3.5 for control circuit cables, M6 for main cables
- Power consumption pick-up at 50 Hz: 149 VA
- Duty factor: 100%
- Dimensions (H x L x W): 115mm x 132mm x 55mm
- Weight: 0.872 kg
Key Features
- Three-pole contactor suitable for AC operation at 240 V 50 Hz
- Rated operational power up to 37 kW at 380/400 V
- Screw terminal connections for secure wiring
- High mechanical lifespan of 10,000,000 operations
- Protection against direct contact when actuated from front
- Rated breaking capacity up to 650 A at 220-500 V
- Shock resistance compliant with IEC/EN 60068-2-27
- Ambient operating temperature range from -25 °C to 60 °C
- Complies with multiple international certifications including IEC/EN 60947
Professional Installation Requirements
- Installation should be performed by a qualified electrician or electrical engineer to ensure compliance with safety standards and correct integration into control systems.
Applications
- Motor control and switching applications
- Industrial automation systems
- Electrical control panels
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High efficiency reduces energy loss during operation
- Durable design minimizes replacement frequency and waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILM72 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
