3 Wire Multiswitch 3 In 4 Out | Passive Design | 5-2400 MHz | Matchmaster

BRAND: Matchmaster

SKU: 21MM-SMS34

$123.20 List price: $149.10

+ −

30 Days Return Delivery Options

3 wire multiswitch with 3 inputs and 4 outputs—ideal for residential and commercial satellite signal distribution. Built for reliable performance, with passive design and wide frequency range.

Description
Attachments

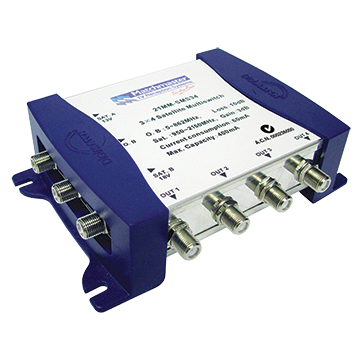

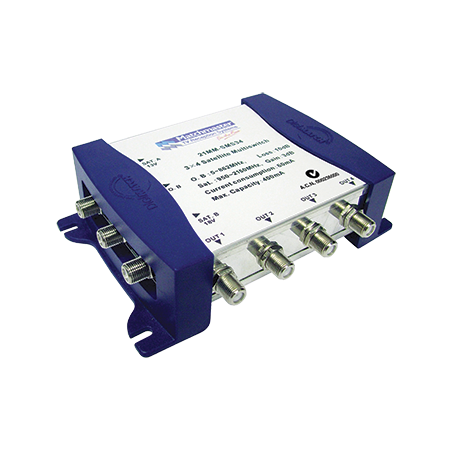

Product Name/Title: 3 Wire Multiswitch 3 In 4 Out Passive

Brand: Matchmaster

SKU: 21MM-SMS34

Alternatively Known As: 3 In 4 Out Multiswitch, Passive Multiswitch, Pay TV Multiswitch

Technical Specifications

Foxtel Approval Number: F30045
Inputs: 3
Outputs: 4
FTA Frequency: 5-862MHz
Sat Frequency: 950-2150MHz
Gain Satellite: 3dB
Loss Terrestrial: 15-18dB
Maximum LNB Current Capacity: 400mA
Dimensions (H x L x W): 100mm x 42mm x 152mm
Weight: 0.27 kg

Key Features

Foxtel approved (F30045)
Allows your TV system to be satellite and pay TV compatible
High output 85dBμV satellite (subject to input power)
Low gain on satellite
Negligible MER loss

Professional Installation Requirements

Professional installation is recommended for optimal performance and compliance with local regulations.

Applications

Residential: Homes with satellite and pay TV systems
Commercial: Hotels, apartments, and other multi-dwelling units

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 3 Wire Multiswitch 3 In 4 Out Passive is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable Pay TV distribution.

Brochure (21mm-sms34_brochure.pdf, 944 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
