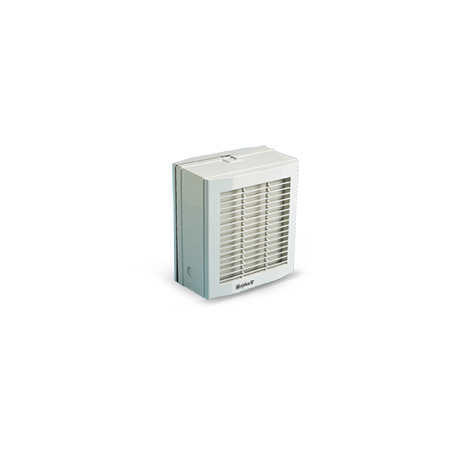

300mm Wall or Window Fan | Single-Phase | IPX4 Rated | ABS Plastic by Fantech
300mm wall or window fan with single-phase 230V power and IPX4 water resistance—ideal for homes and commercial spaces. Built for versatile ventilation, with durable ABS plastic construction and electric shutters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fan wall or window model 300mm 1phase
Brand: Fantech
SKU: HV-300AE
Alternatively Known As: 300mm Wall Fan, 300mm Window Fan, Stylvent Fan
Performance Curve
Technical Specifications
- Electricity supply: single-phase, 230V, 50Hz
- Maximum ambient temperature: 40°C
- Motor type: external rotor motor for HV-230 and HV-300
- Internal thermal protection: auto-reset type for HV-230 and HV-300
- Noise tested to BS848:Part 2, 1985
- Air flow tested to ISO5801:1997
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 3.0 kg
Key Features
- Wall or window mounted design suitable for various applications.
- Can be wired for exhaust or supply mode or dual purpose with optional reversing switch.
- Electric shutters prevent outside air from entering when fan is off.
- IPX4 rated for water resistance.
- Constructed from tough and long-lasting ABS plastic.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Suitable for both supply and exhaust applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design helps reduce power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Stylvent Series 300mm Wall or Window Fan is available now for immediate purchase. Ideal for residential and commercial spaces requiring effective ventilation.
