Home/Electrical/Industrial/Isolators/316 Stainless Steel Enclosure | IP66 | 15º Sloping Roof | N4 Finish by B&R Enclosures

Trade Discount 20%

Finucane FI 1000Hx1000Wx400D IP66 316SS N4 int enc

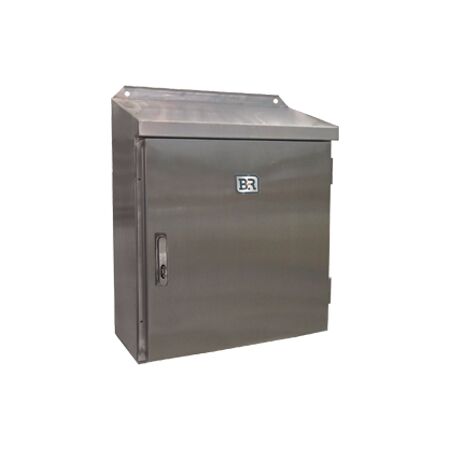

316 Stainless Steel Enclosure | IP66 | 15º Sloping Roof | N4 Finish by B&R Enclosures

BRAND: B&R Enclosures

SKU: FI101040/S

$6,033.70 List price: $7,583.70

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

316 stainless steel enclosure with IP66 protection and a 15º sloping roof—ideal for industrial control applications. Built for durability, with an N4 finish and adjustable mounting pan for flexible cable management.

Description
Attachments

Product Name/Title: Finucane FI 1000Hx1000Wx400D IP66 316SS N4 int enc

Brand: B&R Enclosures

SKU: FI101040/S

Alternatively Known As: 316 Stainless Steel Enclosure, Industrial Control Enclosure, IP66 Enclosure

Technical Specifications

Material: 1.5mm 316 stainless steel
Protection Rating: IP66
Roof Design: 15º forward sloping and reverse angle sloping
Gasket: Formed in place Polyurethane
Surface Finish: ASSDA approved N4
Dimensions (H x L x W): 1000mm x 400mm x 1000mm
Weight: 65 kg

Key Features

IP66 protection rating
15º forward sloping roof to prevent build up of water and solids
Extended roof and gutter system to inhibit water from entering the enclosure on opening
Mounting pan depth adjustable for flexibility with cable glands
Removable doors with pintle hinges
Large opening in bottom for maximum cable access
Designed to protect enclosure from direct sunlight and reduce temperatures inside
Manufactured from 1.5mm 316 stainless steel
Formed in place Polyurethane gasket
ASSDA approved N4 surface finish

Professional Installation Requirements

Professional installation is recommended to ensure compliance with safety standards.

Applications

Local control stations
Mini control consoles
Motor isolators in conveyor runs

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finucane FI – 316SS Industrial Enclosure is available now for immediate purchase, ideal for industrial applications requiring robust protection.

Specification Sheet (, 439 Kb) [Download]
