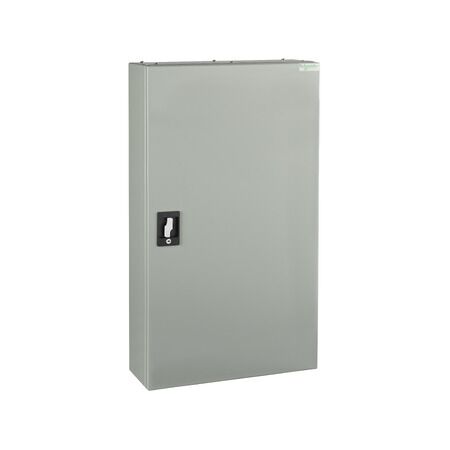

36 Pole Distribution Board | 160A Main Switch | IP42 Rated | Grey by Clipsal
36 pole distribution board with 160A main switch and IP42 rating—ideal for commercial and residential electrical distribution. Built for efficient circuit management, with robust steel enclosure and 18mm spacing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MB Isobar standard distribution board, 36 poles, 160A main switch, 18mm, IP42, grey
Brand: Clipsal
SKU: MB236DM1
Alternatively Known As: Acti9 Distribution Board, Clipsal Isobar DB, 36 Pole Distribution Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 160 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Enclosure type: Standard
- Door type: External plain
- Network frequency: 50 Hz
- Enclosure mounting: Surface
- Dimensions (H x L x W): 1000mm x 235mm x 580mm
- Weight: 50 kg
Key Features
- 36 poles with 18mm spacing for efficient circuit management.
- IP42 rated for protection against solid objects and water.
- 160A main switch for high capacity electrical distribution.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings
- Residential: Homes requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 MB Isobar Standard Distribution Board is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
