4 Way 5 Wire Splitter | 5-862 MHz & 950-2200 MHz | High Isolation | Compact Design by Jonsa
4 way 5 wire splitter with 5-862 MHz and 950-2200 MHz frequency range—ideal for commercial and residential digital distribution systems. Built for efficient signal distribution, with high isolation and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

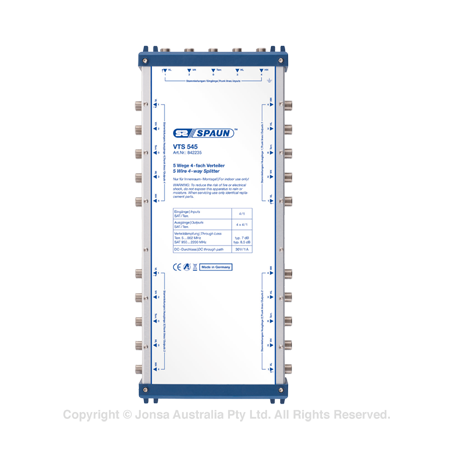

Product Name/Title: SPLITTER 4 WAY 5 WIRE
Brand: Jonsa
SKU: DS/VTS545
Alternatively Known As: 4 Way Splitter, 5 Wire Splitter, Digital Distribution Splitter
Technical Specifications
- Inputs SAT-IF / TERR-RF: 4/1
- Outputs SAT-IF / TERR-RF: 4/1 + 4/1 + 4/1 + 4/1
- Frequency Range: 5 … 862 MHz and 950 … 2200 MHz
- Through Loss Terr-RF: 7 dB
- Through Loss SAT-IF: 8.5 dB
- Isolation Input / Input: > 35 dB
- Isolation Output / Output TERR-RF: > 25 dB
- Isolation Output / Output SAT-IF: > 18 dB
- Max DC-Through: 30 V / 1 A
- Ambient Temperature: -20 … +50 ºC
- Dimensions (H x L x W): 40mm x 305mm x 130mm
- Weight: 1.5 kg
Key Features
- Reduces installation expenditures for large digital distribution systems.
- Divides RF signal of terrestrial trunk line and SAT-IF trunk line into multiple outputs.
- Each trunk line has a separate DC-pass connected to respective output ports.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Commercial: Large digital distribution systems
- Residential: Home entertainment systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient signal distribution reduces energy waste in large systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa 4 Way 5 Wire Splitter is available now for immediate purchase. Ideal for commercial and residential digital distribution systems.
