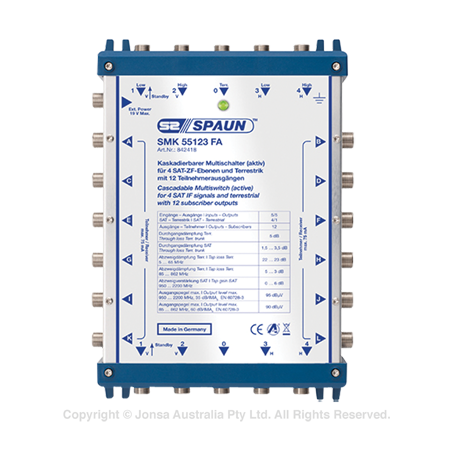

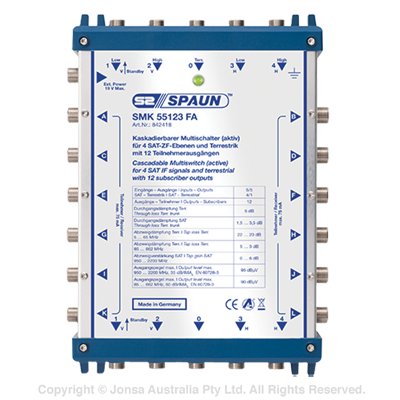

Product Name/Title: MULTISWITCH, 5 WIRE CASCADE 12 OUTPUTS ACTIVE
Brand: Jonsa
SKU: DS/SMK55123FA
Alternatively Known As: Satellite Multiswitch, Cascadable Multiswitch, Active Multiswitch
Technical Specifications
- Inputs / Outputs SAT-IF / TERR-RF: 5 / 5, 4 / 1
- Outputs / Subscribers: 12
- Through Loss TERR-RF: 5 dB
- Through Loss SAT-IF: 2 ... 4 dB
- Tap Loss TERR-RF 5 ... 65 MHz: 22 ... 23 dB
- Tap Loss TERR-RF 85 ... 862 MHz: 5 ... 3 dB
- Tap Gain SAT-IF 950 ... 2200 MHz: 0 ... 6 dB
- Max Output Level TERR-RF 85...862 MHz: 90 dBμV
- Max Output Level SAT-IF 950...2200 MHz: 95 dBμV
- Switching Isolation: ≥ 30 dB
- Isolation Trunk line / Trunk line: > 30 dB
- Isolation Receiver / Receiver: ≥ 30 dB
- Current per Trunk line 0, 2, 3 & 4: 1 A
- Current Consumption for Each Receiver Max: 75 mA
- Ambient Temperature: -20 ... +50 °C
- Dimensions (H x L x W): 225mm x 40mm x 130mm
- Weight: 1.5 kg
Key Features
- Amplifies SAT-IF and TERR-RF signals for optimal performance.
- Remote voltage control for SAT-IF polarity selection.
- DC jack for remote power supply.
- LED operation display for easy monitoring.
- Supports up to six Multiswitches with the optional Power Inserter.
