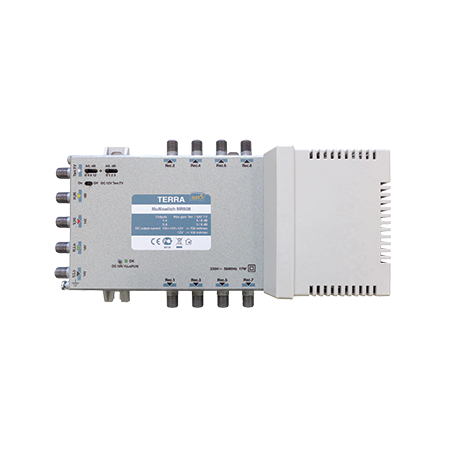

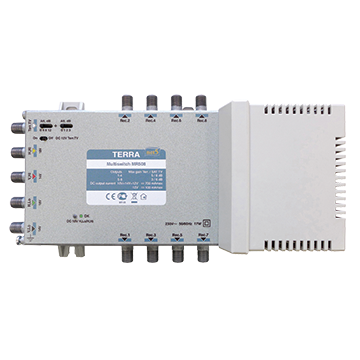

TERRA 5 Wire Multiswitch 5 In 8 Out Mains Powered

5 Wire Multiswitch 5 In 8 Out | Mains Powered | Robust Metal Housing by Matchmaster

BRAND: Matchmaster

SKU: 21MM-MR508

$430.30 List price: $520.80

+ −

30 Days Return Delivery Options

5 wire multiswitch with 5 inputs and 8 outputs—ideal for residential and commercial audio-visual systems. Built for enhanced signal delivery, with mains power and robust metal housing for durability.

Description
Attachments

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 8 Out Mains Powered

Brand: Matchmaster

SKU: 21MM-MR508

Alternatively Known As: 5 Wire Multiswitch, Pay TV Multiswitch, Satellite Multiswitch

Technical Specifications

Frequency Range: SAT IF 950-2400MHz, Terr. TV 47-862MHz
SAT IF Gain: Outputs 1-4: 0 ÷ 8dB, Outputs 5-8: -1 ÷ 6dB
Terr. TV Gain: Outputs 1-4: -1 ÷ 5dB, Outputs 5-8: -2 ÷ 3dB
Gain Adjustment Terr. TV: 15dB by 1dB Steps
Output Level for SAT IF: 96dBµV
Output Level for Terr. TV: Outputs 1-4: 88dBµV, Outputs 5-8: 86dBµV
Supply Voltage Through RF Inputs: H, Lo and H, Hi - 18V; V, Lo and V, Hi - 14V; Terr. TV - 12V
Current Consumption From Receiver: <65mA
Power Consumption: 230V-50/60Hz 2 W
Control Signals: 14/18V, 0/22kHz
Operating Temperature Range: -20° ÷ + 50° C
Dimensions (H x L x W): 52mm x 135mm x 253mm
Weight: 0.8 kg

Key Features

Foxtel approved (F30817)
Star distribution system for 4 satellite IF polarities and terrestrial TV signal up to 4 users
16 positions discrete gain regulator for terrestrial TV
Built-in power supply for remote DC feeding
Possibility to feed pre-amplifier through terrestrial TV input
Used with 5 Wire products only

Professional Installation Requirements

Professional installation is recommended for optimal performance and compliance with local regulations.

Applications

Residential: Homes with multiple TV connections
Commercial: Hotels, apartments, and office buildings

Environmental Benefits

Energy-efficient design with low power consumption.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The TERRA 5 Wire Multiswitch 5 In 8 Out Mains Powered is available now for immediate purchase. Ideal for residential and commercial applications requiring multiple TV connections.

Brochure (21mm-mr508_brochure.pdf, 715 Kb) [Download]

Manual (21mm-mr508_manual.pdf, 430 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
