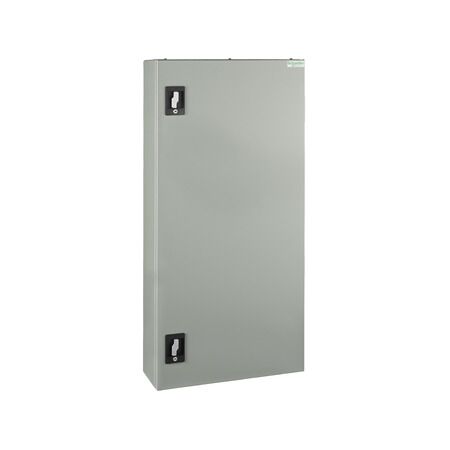

54 Pole Distribution Board | 250A Main Switch | IP42 Rated | Grey by Clipsal
54 pole distribution board with 250A main switch and IP42 rating—ideal for residential, commercial, and industrial applications. Built for robust power distribution, with surface mounting and steel enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Poles description: 3P + N
- Dimensions (H x L x W): 1200mm x 235mm x 580mm
- Weight: 57 kg
Key Features
- 54 poles with a 250A main switch for robust distribution.
- IP42 rated for protection against solid objects and water.
- Designed for surface mounting with a standard enclosure.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, warehouses, and large facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 Isobar Standard Distribution Board is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
