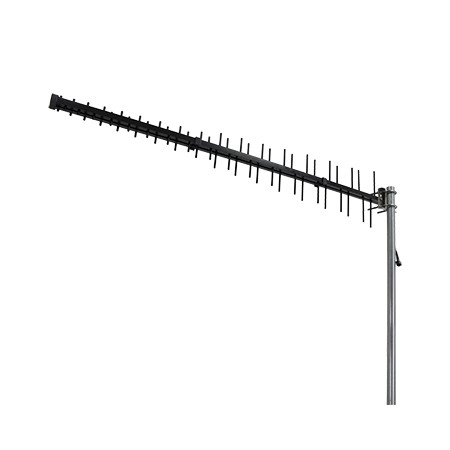

5G/4G Log Periodic Antenna | Up to 10dBi Gain | 700MHz-6GHz | Outdoor Ready by Matchmaster
5G/4G log periodic antenna with up to 10dBi gain and 700MHz-6GHz frequency range—ideal for enhancing mobile network connectivity. Built for telecommunications, with durable outdoor-ready construction and pole mountable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5G/4G Log Periodic High Gain Antenna
Brand: Matchmaster
SKU: 56MM-5G07
Alternatively Known As: 5G Log Periodic Antenna, 4G High Gain Antenna, Multi-band Cellular Antenna, Directional Cellular Antenna
Technical Specifications
- Frequency Range: 694-960 MHz, 1700-4000 MHz
- Peak Gain: 11.3 dBi (698-960 MHz), 11.5 dBi (1695-2700 MHz), 9.5 dBi (3300-4000 MHz)
- Input Impedance: 50Ω
- Polarisation: Vertical
- Max Input Power: 50 W
- Input Connector: N Female
- Cable: RG-142, 300 mm length
- Operating Temperature: -40°C to 65°C
- Mounting: Pole mount Ø 30-50 mm
- VSWR: <1.8:1 across most bands
- Front to Back Ratio: >9 dB to >28 dB depending on frequency band
- Dimensions (H x L x W): 60mm x 1240mm x 200mm
- Weight: 2.2 kg
Key Features
- Multi-band directional antenna covering 694-960MHz and 1700-4000MHz
- High gain: 11.3dBi peak gain on lower bands, 11.5dBi on mid bands, 9.5dBi on upper bands
- Includes 30cm low loss cable tail with pre-terminated 'N' Female connector
- Rugged black powder coated welded aluminium construction with stainless steel mounting bracket
- Factory tuned, no further tuning required
- Pole mount compatible with diameters 30-50 mm
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal antenna positioning and secure mounting.
Applications
- Telecommunications: 5G, 4G, and 3G cellular network enhancement
- Industrial and commercial cellular signal boosting
- Outdoor pole mounting for improved cellular reception
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Supports efficient cellular communication reducing power consumption of devices
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 5G07 Log Periodic High Gain Antenna is available now for immediate purchase. Ideal for telecommunications and cellular signal enhancement applications.
